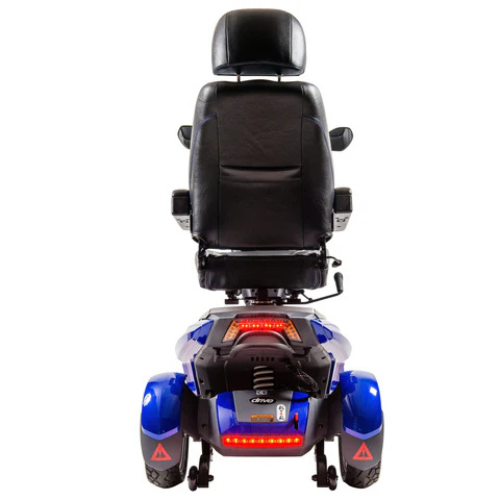

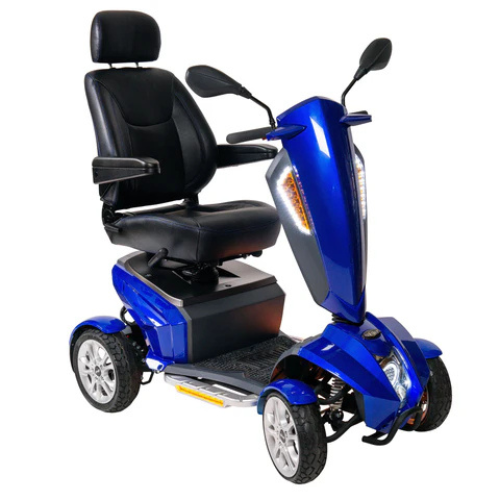

Odyssey GT
Product Summary
- Class-leading 9.5 mph top speed and 22 mile range.
- “High/Low” switch for instant speed control.
- The Sport Style Captain’s Seat in 18″ width and depth features a reclining, fold-down backrest, height adjustability, swivels, and adjusts forward or backward on auto-style seat slides. (Figure A)
- Padded armrests feature easy turn cylinders for angle adjustment.
- Large, air-filled, low-profile tires on Blade style alloy rims. (Figure D)
- Full suspension on articulating frame.
- One-touch, infinite tiller angle adjustment. (Figure C)
- Convenient cup holders built into the tiller. (Figure C)
- Ergonomic delta hand controls.
- Efficient, extra bright LED lighting.
- State-of-the-art control panel with backlighting. (Figure B)
- Side marker lights, hazard lights, turn signals and reflectors for superb visibility.
- Dual rear view mirrors.
- Positioning belt included.
- Anti-tip wheels and Free-Wheel mode standard.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| Weight Capacity | 325 lbs. |
|---|---|
| Top Speed | 9.5 mph |
| Maximum Range | 22 miles |
| Turning Radius | 47.25″ |
| Climbing Angle | 6° |
| Ground Clearance | 3.95″ |
| Dimensions | 52″ (L) x 26.5″ (W) |
| Floor-to-Seat-Height | 28″ – 31.5″ |
| Seat Type | Sport Style Captain’s |
| Controller | PG S DRIVE 120A |
| Motors | 24V x 500W x 5100 RPM |
| Batteries (pair) | 12V x 50AH |
| Charger | 5A Offboard |
| Brakes | Electromagnetic |
| Front Wheels | 11″ x 3.5″ |
| Rear Wheels | 11″ x 4″ |
| Base Weight | 133 lbs. |
| Battery Weight (pair) | 66 lbs. |
| Seat Weight | 55 lbs. |
| Total Weight | 254 lbs. |
| Warranty on Frame | Lifetime |
| Warranty on Electronics | 14 months |
| Warranty on Batteries | 6 months |
Downloads
Downloads
Owners Manual
Catalog Page

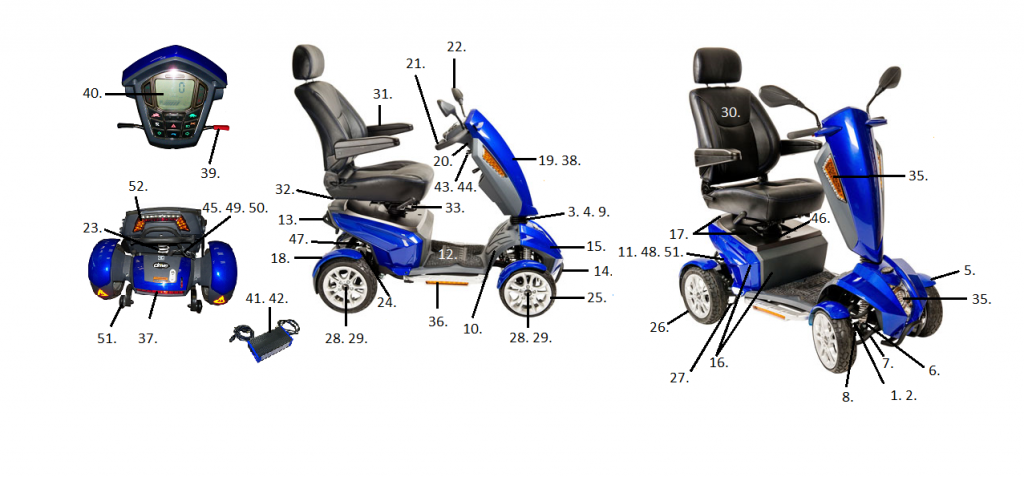

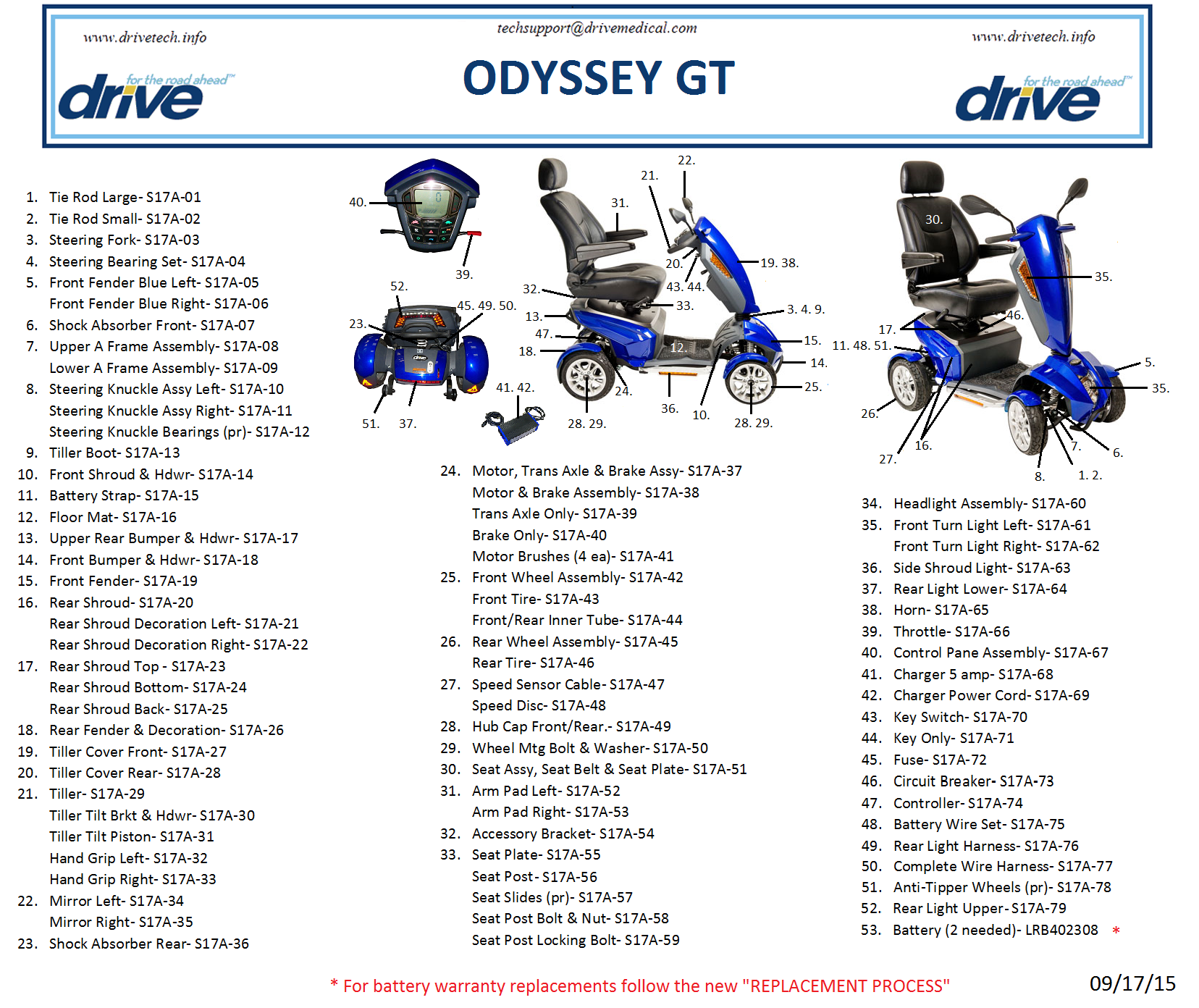

Parts Diagram
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| ODYSSEYGT18CS | Select | 18″ Captains Seat | 1/ea |
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 53 | Select | Battery 50 ah (2 needed) | LRB402308 |
