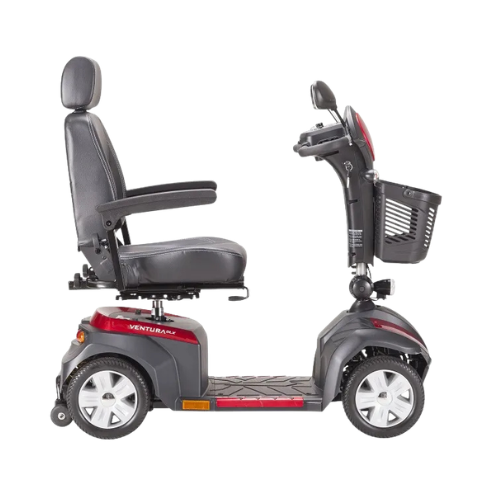

Ventura 4 DLX
Product Summary
- Includes interchangeable color panels in Red and Blue. (Figure A)
- Armrests are padded and adjustable.
- 33AH batteries for extended range.
- Ergonomic throttle control.

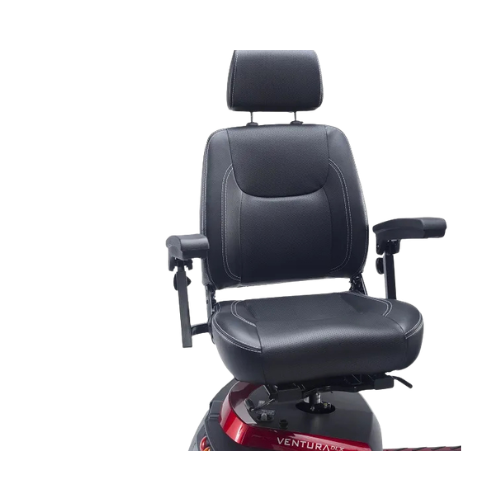

- Height-adjustable swivel seat features fold-down backrest.
- Seat back reclines and features adjustable headrest.
- Seat position can be adjusted forward and backward.
- Front and rear suspension.
- Programmable controller.
- Available with 18” or 20” width Captain’s Seat.
- Flat-free, non-marking tires.
- Large, plastic carry basket.
- Easy-to-adjust tiller.
- Anti-tip wheels.
- Headlight.

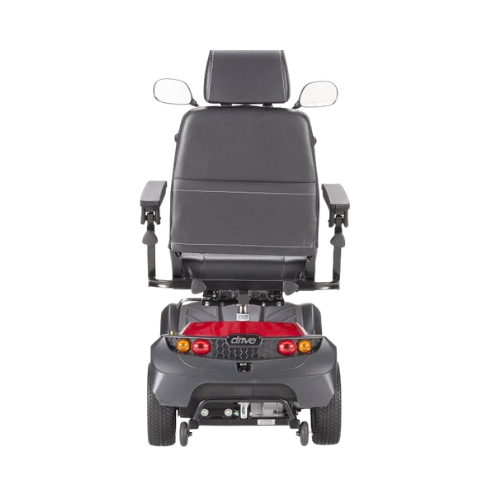

- Rearview mirrors.
- Turn signals/hazard lights.
- Delta tiller.
- Easy free wheel operation.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | N/A |
|---|---|
| Weight Capacity | 350 lbs. |
| Top Speed | 6 mph |
| Maximum Range | 22 miles |
| Turning Radius | 54″ |
| Climbing Angle | 7.5° |
| Ground Clearance | 2.5” |
| Dimensions | 48” (L) x 25” (W) |
| Floor-to-Seat Height | 22” – 24” |
| Seat Type | Captain’s |
| Seat Dimensions | 18” (W) x 18” (D) | 20” (W) x 18” (D) |
| Motor | 24V x 350W x 5100 rpm |
| Batteries (pair) | 12V x 33AH |
| Charger | 4A Offboard |
| Brakes | Electromagnetic |
| Front Wheels | 10” x 3” Flat-free |
| Rear Wheels | 10” x 3” Flat-free |
| Base Weight | 99 lbs. |
| Battery Weight (pair) | 46 lbs. |
| Seat Weight | 40 lbs. |
| Total Weight | 185 lbs. |
| Warranty on Frame | Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 Months |
| Warranty on Batteries | 6 Months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Start Guide
Order Form
Download Video
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| VENTURA418CS | Select | 18″ Captain’s Seat | N/A | 1/cs |
| VENTURA420CS | Select | 20″ Captain’s Seat | N/A | 1/cs |

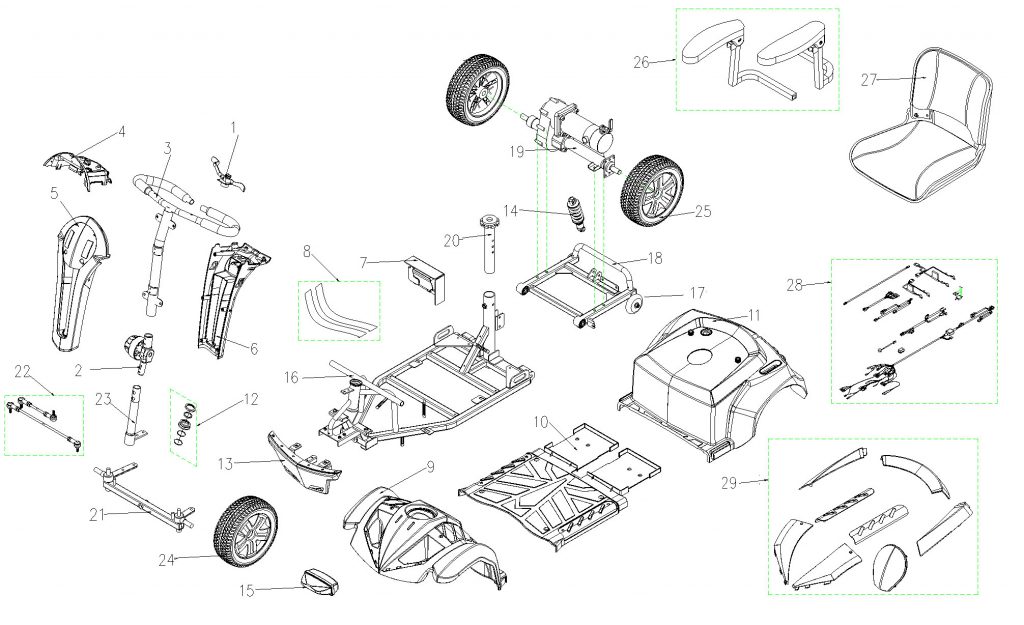

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Forward-Reverse Assy. | VENT-01 |
| 2 | Select | Tiller Swivel Assy. | VENT-02 |
| 3 | Select | Handle Bar Assy. | VENT-03 |
| 4 | Select | Face Plate Assy. Folding Seat | VENT-04 |
| 4 | Select | Face Plate Assy. Capt. Seat | VENT-05 |
| 5 | Select | Front Tiller Cover | VENT-06 |
| 6 | Select | Rear Tiller Cover | VENT-07 |
| 7 | Select | Controller | VENT-08 |
| 8 | Select | Battery Strap | VENT-09 |
| 9 | Select | Stem Bearing Set | VENT-10 |
| 10 | Select | Middle Shroud | VENT-11 |
| 11 | Select | Rear Shroud Folding Seat | VENT-12 |
| 12 | Select | Stem Bearing Set | VENT-13 |
| 13 | Select | Front Bumper Assembly | VENT-14 |
| 14 | Select | Shock Absorber | VENT-15 |
| 15 | Select | Head Light Assy. | VENT-44 |
| 16 | Select | Front Frame | VENT-17 |
| 17 | Select | Anti-tip Wheel | VENT-16 |
| 18 | Select | Rear Frame | VENT-18 |
| 19 | Select | Motor-Transaxle-Brake Assy. | VENT-19 |
| 19 | Select | Transaxle | VENT-20 |
| 19 | Select | Motor | VENT-21 |
| 19 | Select | Electromagnetic Brake | VENT-22 |
| 20 | Select | Seat Post | VENT-36 |
| 21 | Select | Front Fork Assembly | VENT-23 |
| 22 | Select | Steering Rod Assembly | VENT-26 |
| 23 | Select | Steering Axle Assembly | VENT-27 |
| 24 | Select | Front Wheel Assembly | VENT-24 |
| 24 | Select | Front Wheel Bearing | VENT-25 |
| 25 | Select | Rear Wheel Assy. Solid | VENT-28 |
| 26 | Select | Left Arm Assy. Folding Seat | VENT-29 |
| 26 | Select | Right Arm Assy. Folding Seat | VENT-30 |
| 26 | Select | Left Arm Pad Capt. Seat | VENT-31 |
| 26 | Select | Right Arm Pad Capt. Seat | VENT-32 |
| 26 | Select | Left Arm Assy. Capt. Seat | VENT-33 |
| 26 | Select | Right Arm Assy. Capt. Seat | VENT-34 |
| 26 | Select | Arm Pad Folding Seat | VENT-35 |
| 27 | Select | Folding Seat Assy. | VENT-41 |
| 27 | Select | Capt. Seat Assy. 18″ | VENT-42 |
| 27 | Select | Capt. Seat Assy. 20″ | VENT-43 |
| 28 | Select | Wire Harness Folding Seat | VENT-37 |
| 28 | Select | Wire Harness Captain Seat | VENT-38 |
| 29 | Select | Shroud Kit Blue | VENT-40 |
