Phoenix HD 4
Product Summary
- Quick and easy disassembly. (Figure A)
- Includes interchangeable color panels in Red and Blue. (Figure B)
- Armrests are padded and adjustable.
- Quick connect batteries.
- Ergonomic throttle control.
- Height-adjustable swivel seat with two-tone upholstery.
- Flat-free, non-marking tires.
- Large, plastic carry basket.
- Easy-to-adjust tiller.
- Anti-tip wheels.
- Headlight.
- Swivel seat with fold-down backrest.
- Easy free wheel operation.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0801 |
|---|---|
| Weight Capacity | 350 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 54” |
| Climbing Angle | 6° |
| Ground Clearance | 3.75” |
| Dimensions | 41.5” (L) x 22.5” (W) |
| Floor-to-Seat Height | 20” – 22” |
| Seat Type | Folding |
| Seat Dimensions | 17.5” (W) x 17” (D) |
| Motor | 24V x 350W x 3600 rpm |
| Batteries (pair) | 12V x 20AH |
| Charger | 1.5A Offboard |
| Brakes | Electromagnetic |
| Front Wheels | 9” x 3” Flat-free |
| Rear Wheels | 9” x 3” Flat-free |
| Base Weight | 77 lbs. |
| Battery Weight | 31 lbs. |
| Seat Weight | 21 lbs. |
| Total Weight | 129 lbs. |
| Heaviest Piece | 46 lbs. (Front Section) |
| Warranty on Frame | Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 Months |
| Warranty on Batteries | 6 Months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Start Guide
Order Form
Download Video
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| PHOENIXHD4 | Select | 17.5″ Folding Seat | K0801 | 1/cs |

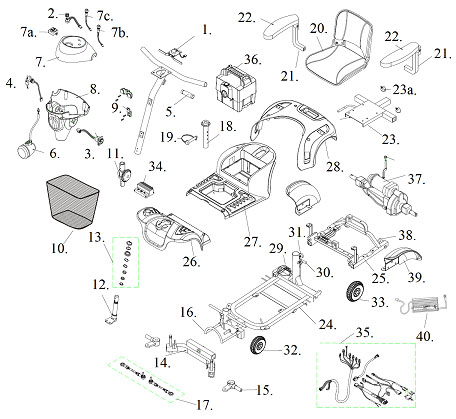

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Throttle Assembly | S31009 |
| 2 | Select | Speed Control | S31001 |
| 2 | Select | Speed Dial Knob | LRM412103-11 |
| 3 | Select | Charger Port | S31147 |
| 4 | Select | Key Switch | S31006 |
| 4 | Select | Key | S3KEY |
| 5 | Select | Handgrip Foam | S31003 |
| 5 | Select | TPR Pastic | C20-007-00200 |
| 6 | Select | Headlight Assembly | S31022 |
| 7 | Select | Upper Tiller Cover | S31004GT |
| 7a | Select | Battery Gauge | S31208B |
| 7b | Select | Headlight Switch | S31122 |
| 7c | Select | Horn Button | S31012 |
| 8 | Select | Lower Tiller Cover | S31209BK |
| 9 | Select | Basket Bracket | BC35051 |
| 10 | Select | Basket | S35003-PL |
| 11 | Select | Tiller Swivel Assembly | S350109 |
| 11 | Select | Tiller Locking Knob | S31028 |
| 12 | Select | Steering Post | S350101 |
| 13 | Select | Tiller Bearing Set | S31021 |
| 15 | Select | Steering Axle | S350102 |
| 16 | Select | Front Bumper | S350104 |
| 17 | Select | Connecting Rod (ea) | S350103 |
| 18 | Select | Seat Post | S31049 |
| 19 | Select | Seat Pin | S350169717 |
| 20 | Select | Seat Assembly | S35045-HD |
| 20 | Select | Back Cover | S35045BC-HD |
| 20 | Select | Seat Cover | S35045SC-HD |
| 21 | Select | Armrest Complete Lt | S35040L-HD |
| 21 | Select | Armrest Complete Rt | S35040R-HD |
| 22 | Select | Arm Par Lt | S35040APL-HD |
| 22 | Select | Arm Par Rt | S35040APR-HD |
| 23 | Select | Seat Plate | S31039-HD |
| 23a | Select | Armrest Knob | S31052 |
| 24 | Select | Front Frame | S350108 |
| 25 | Select | Rear Frame | S31130-4HD |
| 26 | Select | Foot Shroud | S350107 |
| 26 | Select | Front Decoration Blue Left | S3501BL-1 |
| 26 | Select | Front Decoration Blue Right | S3501BR-1 |
| 26 | Select | Front Decoration Red Left | S3501RL-1 |
| 26 | Select | Front Decoration Red Right | S3501RR-1 |
| 27 | Select | Main Decoration Blue Left | S3501BL |
| 27 | Select | Main Decoration Blue Right | S3501BR |
| 27 | Select | Main Decoration Red Left | S3501RL |
| 27 | Select | Main Decoration Red Right | S3501RR |
| 28 | Select | Rear Shroud | S350111 |
| 28 | Select | Rear Decoration Blue Left | S35011B-L |
| 28 | Select | Rear Decoration Blue Right | S35011B-R |
| 28 | Select | Rear Decoration Red Left | S35011R-L |
| 28 | Select | Rear Decoration Red Right | S35011R-R |
| 29 | Select | Frame Contact Front | S31056 |
| 29 | Select | Frame Contact Rear | S31057 |
| 30 | Select | Lock Frame Handle | S350169716 |
| 31 | Select | Tension Knob | S350169715 |
| 32 | Select | Front Wheel Assembly | S350100-4HD |
| 32 | Select | Front Wheel Bearing (pr) | S350100B-4HD |
| 33 | Select | Rear Wheel Assembly | S31132B-HD |
| 33 | Select | Rear Axle Bolt | S350112AN |
| 34 | Select | Controller | S31008GT-HD |
| 35 | Select | Wire Harness | S31048-HD |
| 36 | Select | Battery Case Only | S350169706-HD |
| 36 | Select | Battery (order 2) | LRM412123 |
| 36 | Select | Battery Box Charge Port | S350169706-HDCP |
| 37 | Select | Controller Cover | S350113 |
| 38 | Select | Anti-Tip Wheel | S31026 |
| 38 | Select | Front & Rear Wheel Bolt | S350016910 |
| 39 | Select | Mud Flap Left | S35048MFL |
| 39 | Select | Mud Flap Right | S35048MFR |
| 41 | Select | Motor/TransaxIe/Assembly | S31125HD |
| 41 | Select | Motor/Brake | S31031-HD |
| 41 | Select | Transaxle | S350112-HD |
| 41 | Select | Transaxle Bracket | S350112BKT-HD |
| 41 | Select | Free Wheel Knob | S31031K |
| 41 | Select | Motor Axle Key | 29002W7011 |
| Select | Battery Pack | S350169707 | |
| Select | Front Fork | S350105-HD |
