Scout DST 3-Wheel
Product Summary
- Dynamic Suspension Technology (DST) features front and rear suspension coils for the most comfortable ride on all terrain. (Figure D)
- Charge port located on the control panel and battery pack for easy charging.
- Headlight
- Interchangeable color panels in red and blue.
- Quick & easy disassembly.
- Armrests are padded, contoured, width and angle adjustable. (Figure F)
- Delta tiller with ergonomic throttle control. (Figure E)
- Armrest covers with reflectors.
- Large plastic basket with carry handle.
- Height adjustable swivel seat with fold down backrest.
- Anti-tip wheels.
- Extended footboard provides ample space for taller users. (Figure C)
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| Weight Capacity | 325 lbs. |
|---|---|
| Top Speed | 4.25 mph |
| Estimated Range | 15 miles |
| Max Climbing Angle | 6° |
| Turning Radius | 45″ |
| Ground Clearance | 2.5″ |
| Dimensions | 42.5″ (L) x 21.25″ (W) x 36″ (H) |
| Seat Dimensions | 17.5″ (W) x 16″ (D) |
| Back Height | 14″ |
| Controller | CURTIS 45A |
| Motor | 270W x 4700RPM |
| Batteries | 20AH |
| Charger | 2A |
| Brakes | Electromagnetic |
| Freewheel Mode | Yes |
| Front Wheels | 8″ x 2″ |
| Rear Wheels | 8″ x 2″ |
| Anti-Tip Wheels | 2″ x ¾” |
| Base Weight | 60 lbs. |
| Battery Weight (Pair) | 30 lbs. (20 AH) |
| Seat Weight | 23 lbs |
| Heaviest Piece Weight | Front Section: 34 lbs. |
| Total Weight | 113 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronics, Controller, Drive-Train Components | 14 months |
| Warranty on Batteries | 6 months |
Downloads
Downloads
Catalog Page

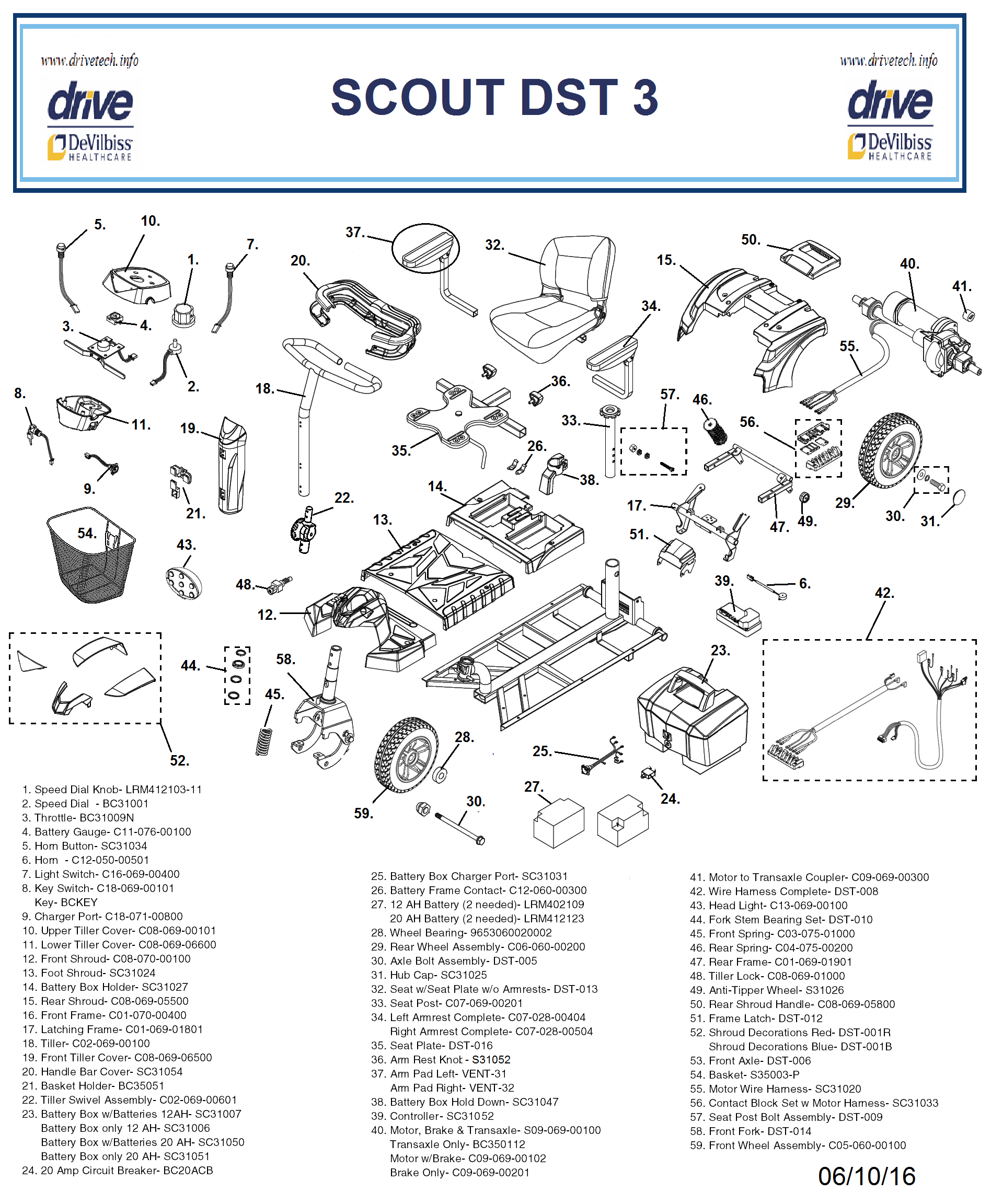

Parts Diagram
Products
Products
| Item # | Seat | Battery | HCPCS* | UOM | |
|---|---|---|---|---|---|
| SCOUTDST3 | Select | 17.5″ Folding Seat | 20AH | 1/ea |
Order Now!
Order Now!
[gravityform id=”1″ title=”false” description=”false”]
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
