Medalist
Please visit the store for more information or call us at: (905) 828-1980
Description
- Height adjustable swivel seat features fold down backrest.
- Seat back reclines and features adjustable headrest.
- Adjustable length controller mount.
- Armrests are padded, adjustable and removable.
- Available with 18″, 20″ or 22” width Captain’s Seat.
- Optional swing-away controller arm (Item #AA4100) sold separately.
- Adjustable, flip-up footplate.
- Positioning belt included.
- Optional elevating legrests (requires Item #AE2500 & Item #LK3JELR) sold separately.
- Programmable controller.
- Flat-free, non-marking tires.
- Easy free-wheel operation.
- Anti-tip wheels.
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0823 |
|---|---|
| Weight Capacity | 300 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 31″ |
| Climbing Angle | 6° |
| Ground Clearance | 3″ |
| Dimensions | 41” (L) x 26” (W) |
| Floor-to-Seat Height | 20″ – 23″ |
| Captain’s Seat Dimensions | 18” (W) x 18” (D) | 20” (W) x 18” (D) |
| Controller | PG VSi 50A |
| Motors (2) | 24V x 320W x 4600 rpm |
| Batteries (pair) | 12V x 35AH (U1) |
| Charger | 5A Offboard |
| Brakes | Electromagnetic |
| Caster Wheels | 8” x 2” Solid |
| Drive Wheels | 10” x 3” Flat Free |
| Base Weight | 97 lbs. |
| Battery Weight | 48 lbs. |
| Seat Weight | 43 lbs. |
| Total Weight | 188 lbs. |
| Warranty on Frame | Lifetime |
| Specification 23 | Warranty on Electronic Controller/Drive Train Components 3 Years |
| Warranty on Batteries | 6 Months |
Downloads
Downloads
Owners Manual
Catalog Page

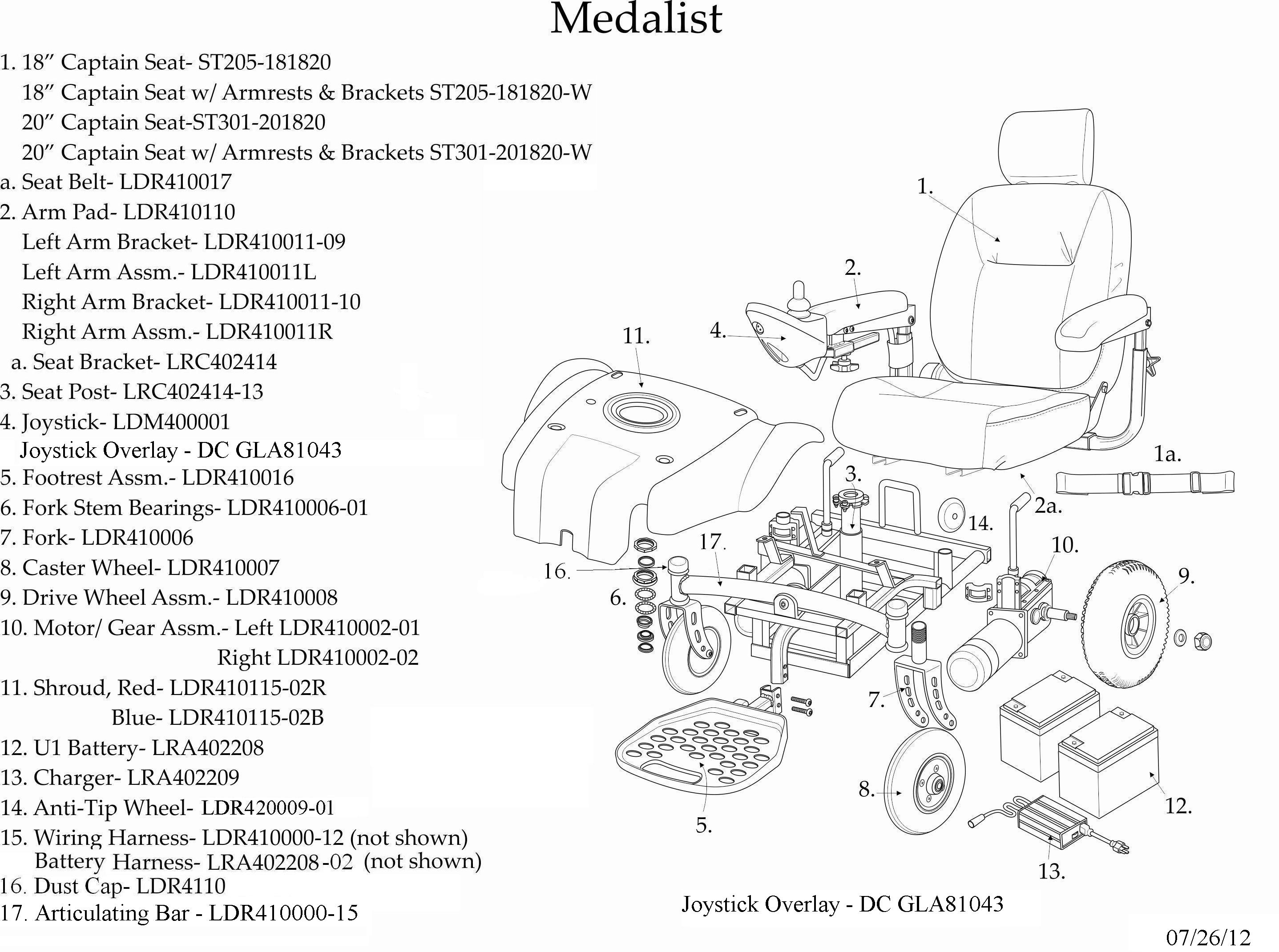

Parts Diagram
Start Guide
Products
Parts

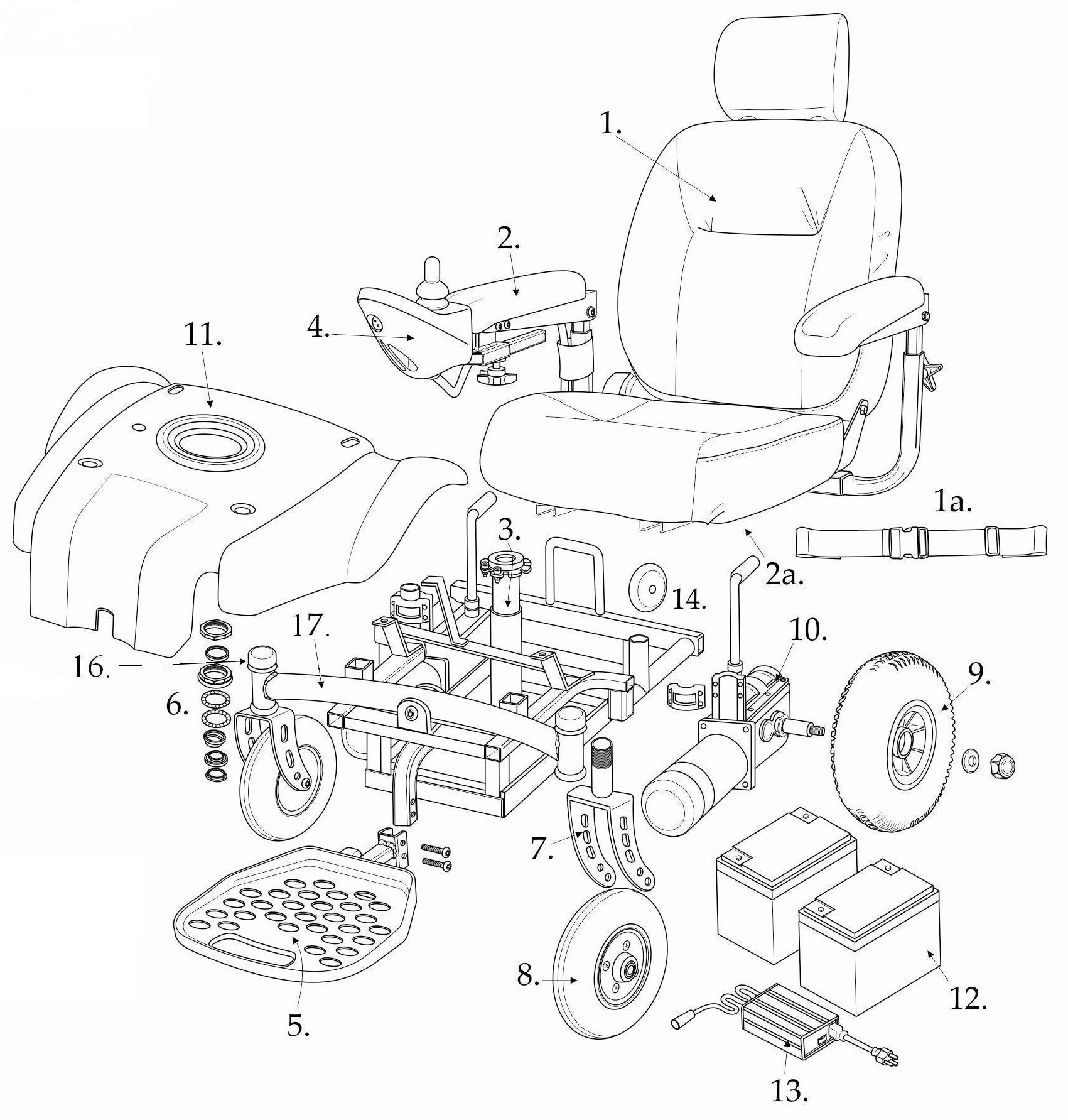

Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | 18″ Captain Seat | ST205-181820 | |
| 1 | 18″ Captain Seat Assm. (includes armrests and seat bracket) | ST205-181820-W | |
| 1 | Seat 20″ | ST301-201820 | |
| 1 | 20″ Captain Seat Assm. (includes armrests and seat bracket) | ST301-201820-W | |
| 1a | Seat Belt | LDR410017 | |
| 2 | Arm Pad Bolt On | LDR410110 | |
| 2 | Arm Rest Left Elbow | LDR410011-09 | |
| 2 | Bolt On | LDR410011L | |
| 2 | Arm Rest Elbow Right | LDR410011-10 | |
| 2 | Bolt On | LDR410011R | |
| 2a | Seat Plate | LRC402414 | |
| 3 | Seat Post | LRC402414-13 | |
| 5 | Footrest Assm. | LDR410016 | |
| 6 | Fork Stem Bearings | LDR410006-01 | |
| 7 | Caster Fork | LDR410006 | |
| 8 | Caster Wheel Assm. | LDR410007 | |
| 9 | Drive Wheel Assm. | LDR410008 | |
| 10 | Gearbox Assm. Left | LDR410002-01 | |
| 10 | Gearbox Assm. Right | LDR410002-02 | |
| 11 | Shroud, Red | LDR410115-02R | |
| 11 | Shroud, Blue | LDR410115-02B | |
| 12 | Batteries (ea. 2 needed) | LRA402208 | |
| 13 | Charger | LRA402209 | |
| 14 | Anti-Tip Wheel (ea) | LDR420009-01 | |
| 15 | Wiring Harness | LDR410000-12 | |
| 15 | Battery Harness (not shown) | LRA402208 -02 | |
| 16 | Fork Stem Cap | LDR4110 | |
| 17 | Articulating Bar | LDR410000-15 | |
| 17 | Joystick Overlay | DC GLA81043 |
