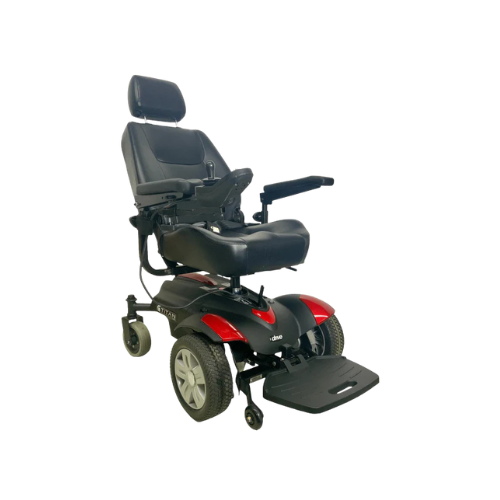

Titan X16

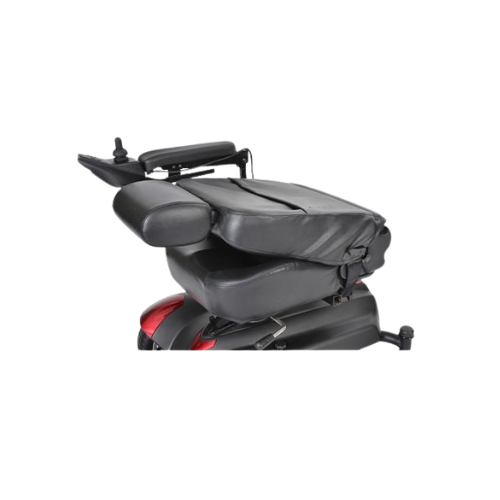

- Height-adjustable swivel seat features fold-down backrest. (Figure A)
- Includes interchangeable color panels in red and blue.
- Seat back reclines and features adjustable headrest.
- Adjustable-length controller mount. (Figure B)
- Armrests are padded, adjustable and removable.
- Available with 16”, 18”, 20” and 22” wide Captain’s Seat.
- Optional swing-away controller arm (Item #AA4100) sold separately.
- Solid, flip-up footplate with adjustable height, depth and angle
- Positioning belt included.
- Optional elevating leg rests (requires Item #AE2500 & Item #LK3JELR) sold separately.
- Programmable controller.
- Flat-free, non-marking tires. (Figure C)
- Easy free wheel operation. (Figure D)
- Anti-tip wheels
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0816 |
|---|---|
| Weight Capacity | 300 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 25” |
| Climbing Angle | 6° |
| Ground Clearance | 2.5” |
| Dimensions | 40” (L) x 24” (W) |
| Floor-to-Seat Height | 20.5″ – 23″ |
| Controller | Dynamic Shark 40A |
| Motors (2) | 24V x 200W x 3900 rpm |
| Batteries (pair) | 12V x 35AH (U1) |
| Charger | 3A Offboard |
| Brakes | Electromagnetic |
| Caster Wheels | 6” x 2” Solid |
| Drive Wheels | 10” x 3” Flat-free |
| Base Weight | 68 lbs. |
| Battery Weight (pair) | 44 lbs. |
| Seat Weight | 43 lbs. |
| Heaviest Piece Disassembled | 55 lbs. |
| Total Weight | 158 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 months |
| Warranty on Batteries | 6 months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Form
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| TITANLB18CSX16 | Select | 18′ x 18″ Captain Seat , Standard Back | K0816 | 1/cs |
| TITAN18CSX16 | Select | 18′ x 18″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN20CSX16 | Select | 20″ x 18″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN1616X16 | Select | 16″ x 16″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN1618X16 | Select | 16″ x 18″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN1816X16 | Select | 18″ x 16″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN2020X16 | Select | 20″ x 20″ Captain Seat, Full Back | K0816 | 1/cs |
| TITAN22CSX16 | Select | 22″ x 20″ Captain Seat, Full Back | K0816 | 1/cs |
Order Now!
Order Now!
[gravityform id=”1″ title=”false” description=”false”]

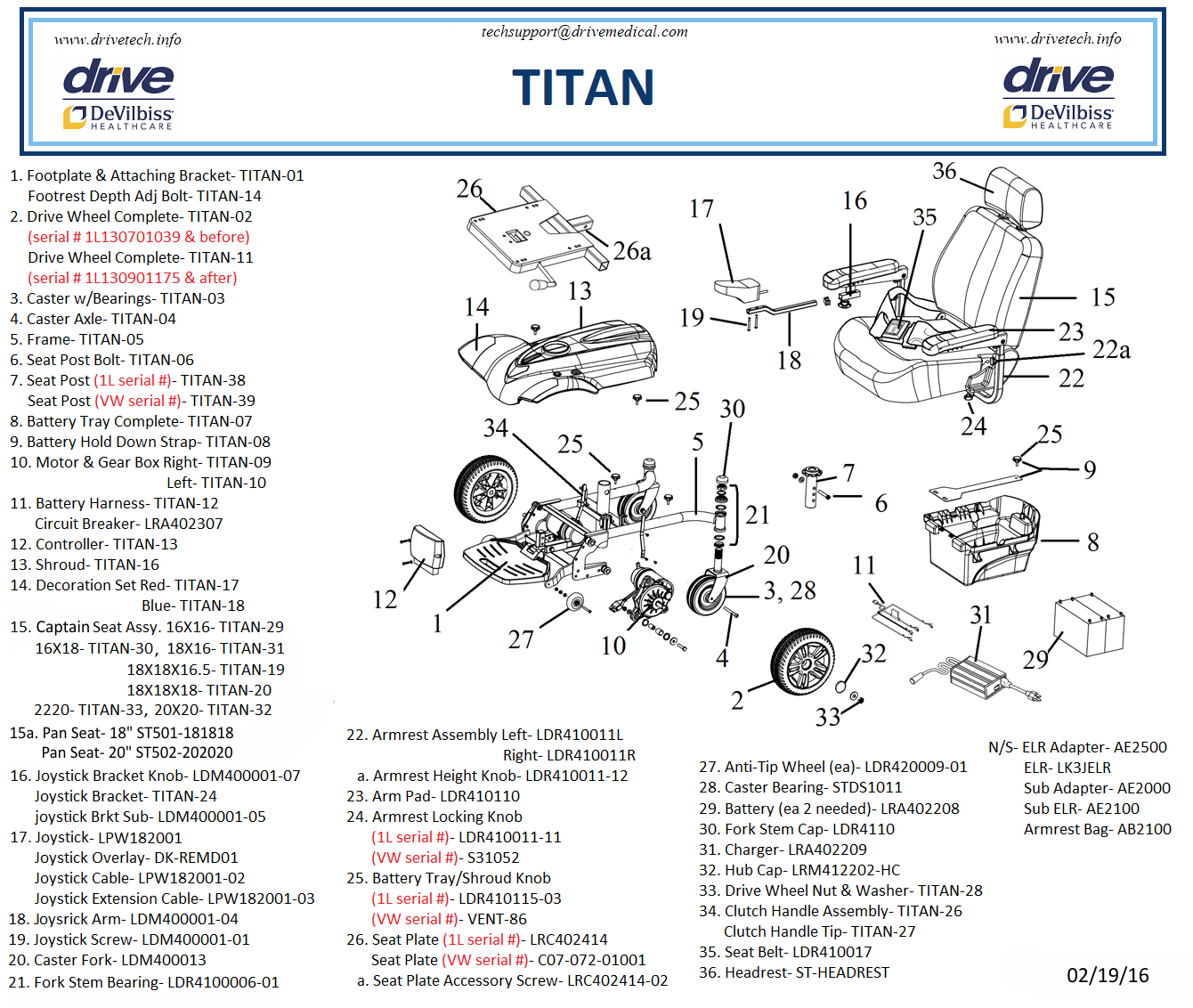

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Footplate & Attaching Bracket | TITAN-01 | |
| 1 | Footplate & Depth Adj Bolt | TITAN-14 | |
| 2 | Drive Wheel Complete (serial # 1L130901175 and after) | TITAN-11 | |
| 3 | Caster W/Bearings | TITAN-03 | |
| 4 | Rear Caster Axle | TITAN-04 | |
| 5 | Frame | TITAN-05 | |
| 6 | Seat Post Bolt | TITAN-06 | |
| 7 | Seat Post | LRC402414-13 | |
| 8 | Battery Tray Complete | TITAN-07 | |
| 9 | Battery Hold Down Strap | TITAN-08 | |
| 10 | Motor & Gearbox, Right | TITAN-09 | |
| 10 | Motor & Gearbox, Left | TITAN-10 | |
| 11 | Battery Harness | TITAN-12 | |
| 11 | Circuit Breaker 50 amp | LRA402307 | |
| 12 | Controller | TITAN-13 | |
| 13 | Shroud | TITAN-16 | |
| 14 | Decorative Shroud Set, Red | TITAN-17 | |
| 14 | Decorative Shroud Set, Blue | TITAN-18 | |
| 15 | Complete Seat Assembly 16×16 | TITAN-29 | |
| 15 | Complete Seat Assembly 16×16 | TITAN-30 | |
| 15 | Complete Seat Assembly 18×16 | TITAN-31 | |
| 15 | Complete Seat Assembly 18x16x16.5 | TITAN-19 | |
| 15 | Complete Seat Assembly 18x18x18 | TITAN-20 | |
| 15 | Complete Seat Assembly 20×18 | TITAN-21 | |
| 15 | Complete Seat Assembly 20×20 | TITAN-32 | |
| 15 | Complete Seat Assembly 22×20 | TITAN-33 | |
| 16 | Joystick Bracket Knob | LDM40001-07 | |
| 16 | Joystick Bracket | TITAN-24 | |
| 17 | Joystick | LPW182001 | |
| 17 | Joystick Overlay | DK-REMD01 | |
| 17 | Joystick Cable | LPW182001-02 | |
| 18 | Joystick Arm | LDM400001-04 | |
| 19 | Joystick Screws | LDM400001-01 | |
| 20 | Caster Fork | LDM400013 | |
| 21 | Fork Stem Bearings | LDR410006-01 | |
| 22 | Bolt On | LDR410011L | |
| 22 | Bolt On | LDR410011R | |
| 22a | A/R Height Adj. Knob | LDR410011-12 | |
| 23 | Arm Pad Bolt On | LDR410110 | |
| 24 | Armrest Knob | S31052 | |
| 25 | Shroud Knob | VENT-86 | |
| 26 | Seat Plate | LRC402414 | |
| 27 | Anti-Tip Wheel (ea) | LDR420009-01 | |
| 28 | Caster Bearings | STDS1011 | |
| 29 | Batteries (ea. 2 needed) | LRA402208 | |
| 30 | Fork Stem Cap | LDR4110 | |
| 31 | Charger | LRA402209 | |
| 32 | Hub Cap | LRM412202-HC | |
| 33 | Drive Wheel Nut & Washer | TITAN-28 | |
| 34 | Clutch Handle Assembly | TITAN-26 | |
| 34 | Clutch Handle Tip | TITAN-27 | |
| 35 | Seat Belt | LDR410017 | |
| 36 | Leg Rest Attachment Bracket | AE2500 | |
| 36 | ELR | LK3JELR | |
| Shroud Knob | LDR410115-03 (1L Serial #) | ||
| A/R Width Adj. Knob | LDR410011-11 (1L serial #) | ||
| Headrest | ST-HEADREST |
