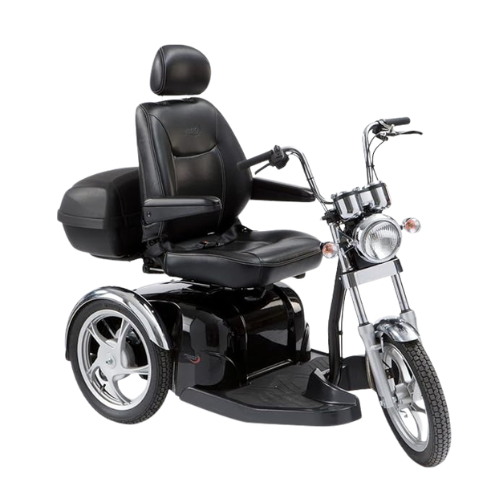

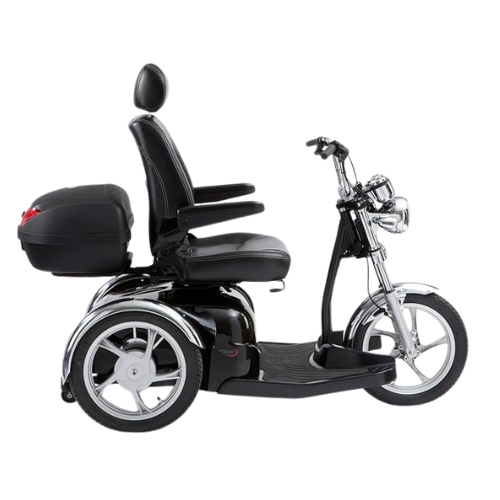

Maverick
Product Summary
- Sport Style Captain’s Seat available in 20” or 22” seat widths.
- Captain’s seat swivels and features a reclining backrest, and height adjustable headrest.
- Padded armrests feature easy turn cylinder for angle adjustment.

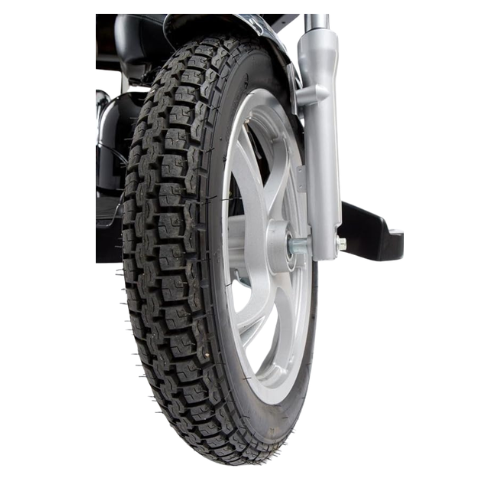

- 19.5” Air-filled, low-profile tires. (Figure E)
- Front and rear motorcycle inspired suspension for the smoothest outdoor ride quality. (Figure G)
- Stylish controls are conveniently located on the handlebars for ease of use. (Figure F)

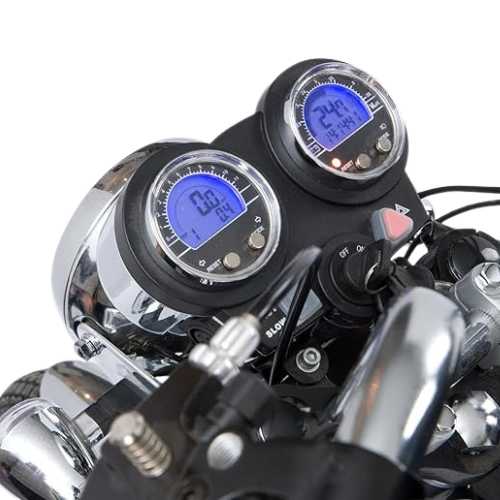

- Smoked windshield provides glare reduction on the Digital LED display with real-time feedback. (Figure D)

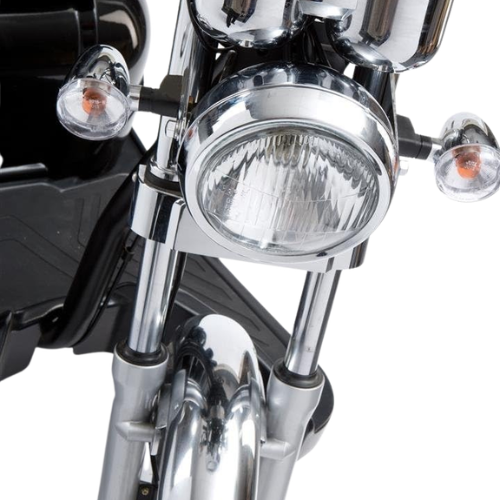

- Efficient, extra bright LED lighting. (Figure C)
- Easy-to-access key switch and charge port located at the control panel. (Figure F)

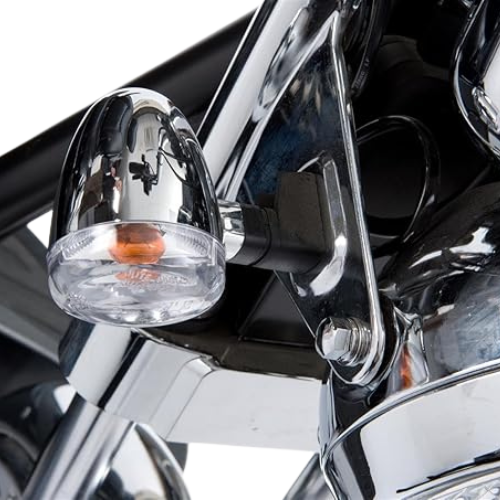

- Hazard lights, turn signals and reflectors for superb visibility.
- Rear view mirror included.
- Positioning belt included.
- Anti-tip wheels.
- Easy, free wheel mode.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| Weight Capacity | 400 lbs. |
|---|---|
| Top Speed | 9.5 mph |
| Max Range | 35 miles |
| Turning Radius | 62″ |
| Climbing Angle | 10° |
| Ground Clearance | 5″ |
| Dimensions | 65″ (W) x 31″ (H) |
| Seat Dimensions | 20″ (W) x 20″ (H) ; 22″ (W) x 20″ (H) |
| Controller | Dynamic 160A |
| Motor | 1300W |
| Batteries | 75 AH |
| Charger | 8A |
| Brakes | Electromagnetic & Hand Brake |
| Front Wheels | 19.5″ x 2.75″ |
| Rear Wheels | 19.5″ x 2.75″ |
| Base Weight | 181 lbs. |
| Battery Weight | 94 lbs. |
| Seat Weight | 55 lbs. |
| Total Weight | 330 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 months |
| Warranty on Battery | 6 months |
Downloads
Downloads
Owners Manual
Catalog Page

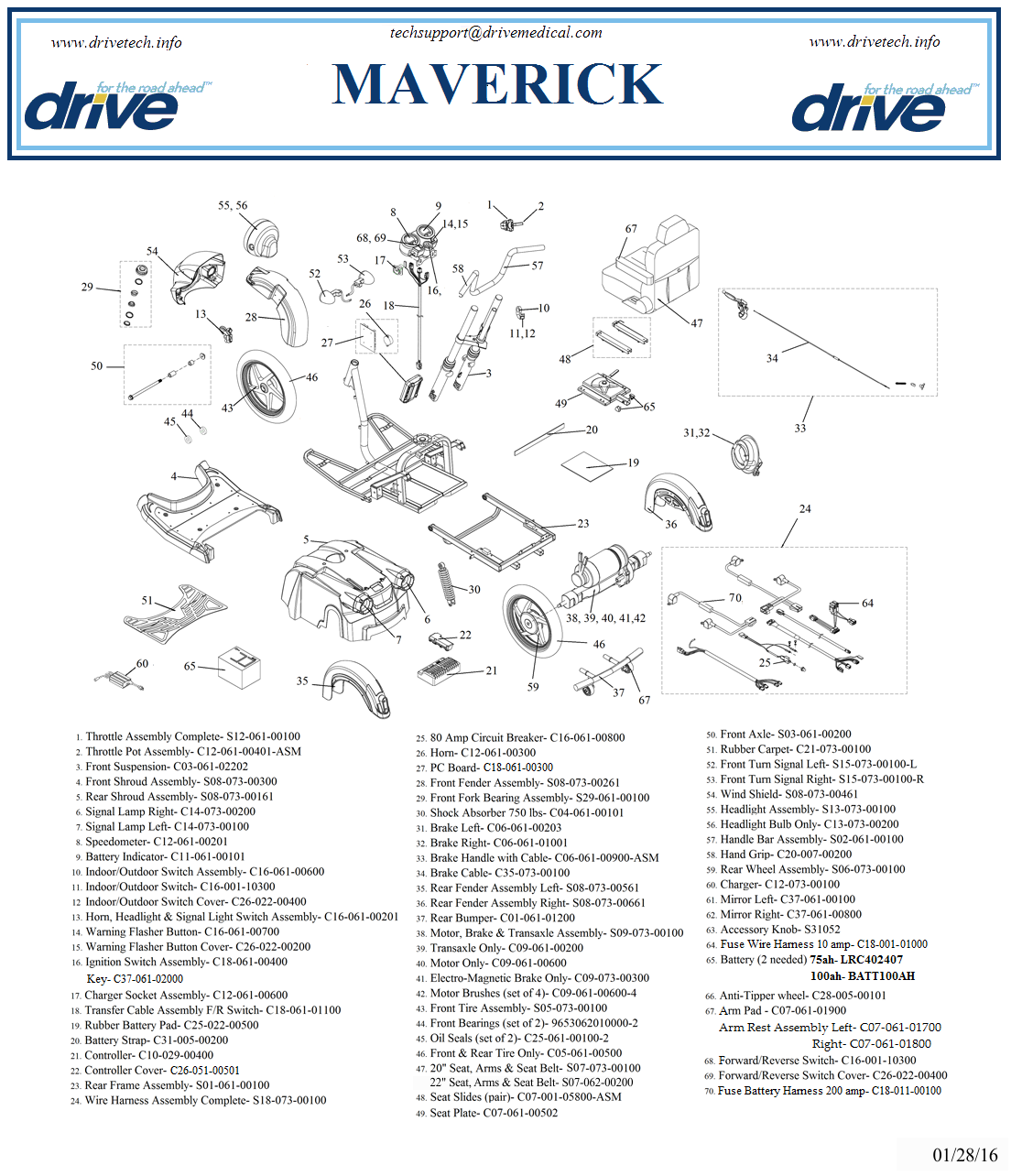

Parts Diagram
Products
Products
| Item # | Product Dimensions | HCPCS* | UOM | |
|---|---|---|---|---|
| Maverick20CS | Select | 65″ x 31″ x 56 | 1/ea | |
| Maverick22CS | Select | 65″ x 31″ x 56 | 1/ea |
