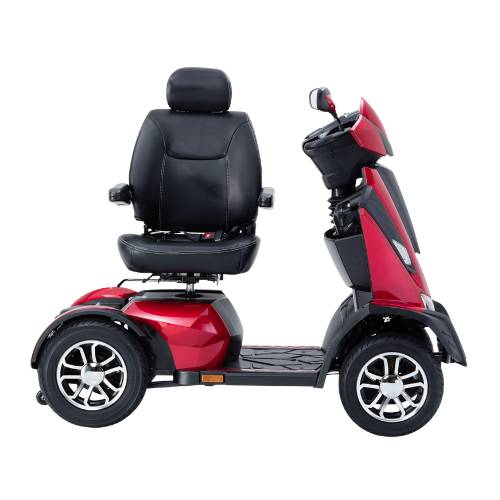

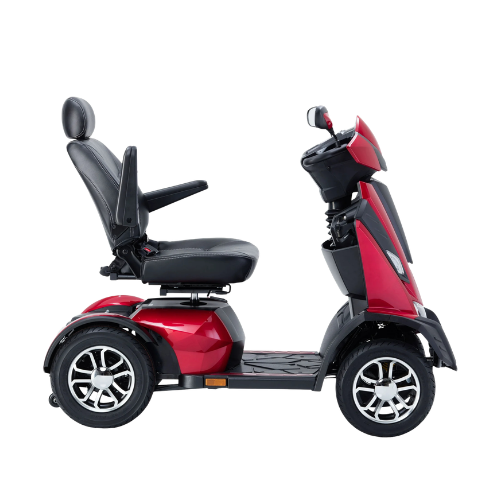

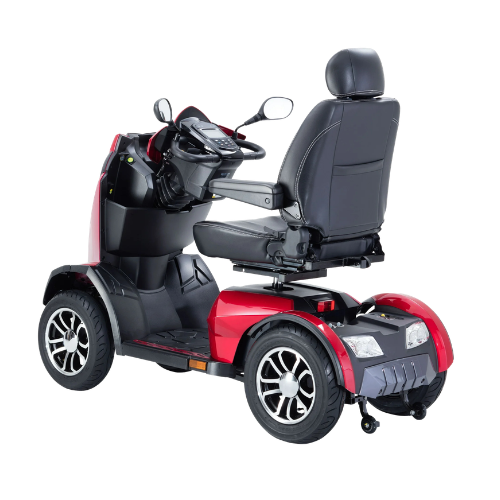

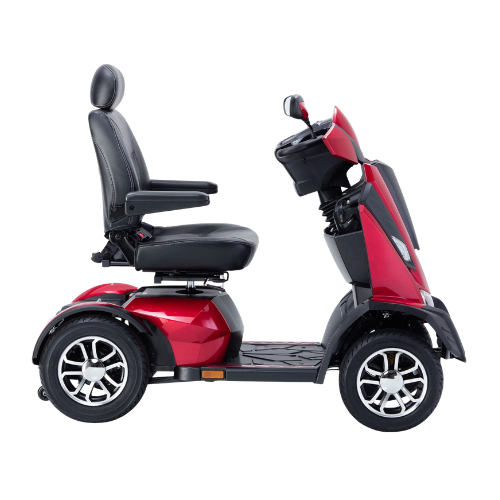

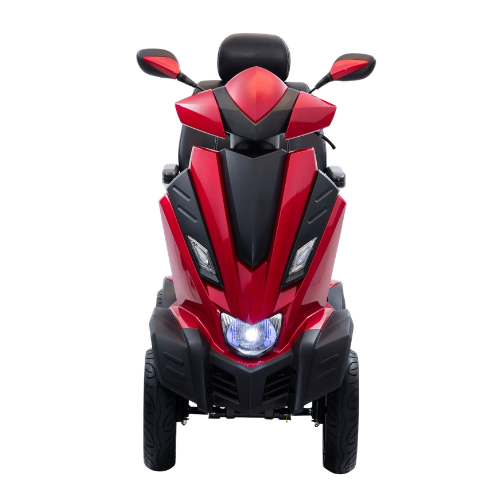

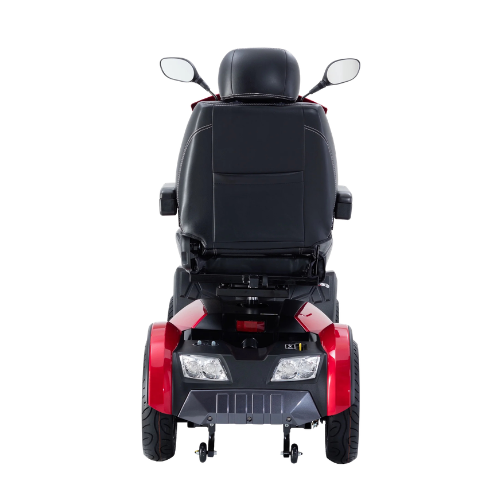

King Cobra
Product Summary
- New, innovative design for a distinctive, stylish appearance.
- One-touch, infinite tiller adjustment allows the user to easily position the tiller into the ideal driving position.
- Ergonomic delta control handles makes it easier for users with limited strength and dexterity to operate the scooter. (Figure E)
- Built-in USB port for charging your mobile devices.
- Built-in cup holder to conveniently carry your drinks. (Figure A)
- Large, air-filled, low profile tires and full suspension for the smoothest outdoor ride quality. (Figure C)
- Blade-style alloy rims. (Figure D)
- Efficient, extra bright LED lighting.
- 22″ Wide Full-size, Sport Style, Captain Seat.
- Sport Style Captain Seat is height adjustable, swivels and features a fold-down, reclining backrest.
- Padded armrests feature easy turn cylinder for angle adjustment.
- Easy, free wheel mode. (Figure B)
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| Weight Capacity | 450 lbs. |
|---|---|
| Top Speed | 11 mph |
| Maximum Range | 35 miles |
| Turning Radius | 83″ |
| Climbing Angle | 8° |
| Ground Clearance | 4″ |
| Dimensions | 67″ (L) x 28.8″ (W) |
| Floor-to-Seat Height | 27″ – 30″ |
| Seat Type | Sport Style Captain’s |
| Seat Dimensions | 22″ (W) x 20″ (D) |
| Controller | Dynamic Rhino II 180A |
| Motor | 24V x 1300W |
| Batteries | (pair) 12V x 75AH |
| Charger | 8A Offboard |
| Brakes | Electromagnetic & Hand |
| Front Wheels | 16″ x 4″ |
| Rear Wheels | 17″ x 4″ |
| Color | Vivid Red |
| Base Weight | 209 lbs. |
| Battery Weight (pair) | 94 lbs. |
| Seat Weight | 60 lbs. |
| Total Weight | 363 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 24 Months |
| Warranty on Batteries | 12 Months |
Downloads
Downloads
Owners Manual
Catalog Page
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| KINGCOBRA422CS | Select | Executive Scooter | 1/ea |
Order Now!
Order Now!
[gravityform id=”1″ title=”false” description=”false”]
