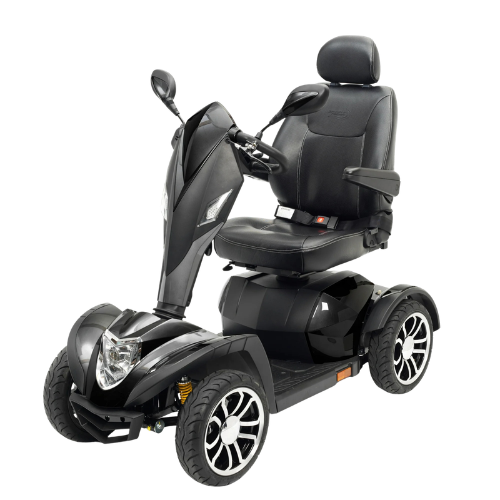

Cobra GT4
Product Summary
- New, innovative design for a distinctive, stylish appearance.
- One-touch, infinite tiller angle adjustment allows the user to easily position the tiller into the ideal driving position.
- Ergonomic delta control handles makes it easier for users with limited strength and dexterity to operate the scooter.
- Large, air-filled, low profile tires and full suspension for smoothest outdoor ride quality.
- “Blade” style alloy wheel rims.
- Efficient, extra bright LED lighting. (Tail Lights and Turn Signals)
- Choice of Full size, Sport Style, Captain’s Seats in 20″ or 22″ widths.
- Seats are height adjustable, swivel and feature a fold-down, reclining backrest. Seats can be adjusted forward or backward on auto-style slides.
- Padded armrests feature easy turn cylinders for angle adjustment.
- Positioning belt included.
- “High/Low” switch for instant speed control.
- Anti-tip wheels for greater safety.
- Easy, freewheel mode
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| Weight Capacity | 450 lbs. |
|---|---|
| Top Speed | 10 mph |
| Maximum Range | 35 miles |
| Turning Radius | 82″ |
| Climbing Angle | 8° |
| Ground Clearance | 7″ |
| Dimensions | 63” (L) x 28.8″ (W) |
| Floor-to-Seat Height | 27″ – 30″ |
| Seat Dimensions | 20″ (W) x 20″ (D) | 22″ (W) x 20″ (D) |
| Controller | Dynamic Rhino II 160A |
| Motor | 24V x 950W x 5200 rpm |
| Batteries (pair) | 12V x 75AH |
| Charger | 5A Offboard |
| Brakes | Electromagnetic |
| Front Wheels | 14″ x 14″ Pneumatic |
| Rear Wheels | 14″ x 14″ Pneumatic |
| Base Weight | 191 lbs. |
| Battery Weight (pair) | 94 lbs. |
| Seat Weight | 55 lbs. |
| Total Weight | 340 lbs. |
| Warranty on Frame | Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 months |
| Warranty on Battery | 6 months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Start Guide
Order Form
Download Video
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| COBRAGT420CS | Select | 20″ Captain’s Seat | 1/cs | |
| COBRAGT422CS | Select | 22″ Captain’s Seat | 1/cs |
Parts
Parts
Order Now!
Order Now!
[gravityform id=”1″ title=”false” description=”false”]
Related products
Bobcat X4
Product Summary
- Ultra-lightweight for superior portability.
- Quick and easy disassembly.
- Color-through shroud hides scuffs and scratches.
- Angle adjustable flip-up armrests for maximum comfort and convenient boarding and exiting.
- Easy finger-pull throttle control.
- Height adjustable seat with fold down backrest
- Flat-free, non-marking tires for worry-free travel.
- Large, metal carry basket.
- Easy-to-adjust tiller angle places the scooter's controls in the ideal position.
- Anti-tip wheels for additional safety.
- Easy freewheel operation.
Please visit the store for more information or call us at: (905) 828-1980
Cirrus Plus HD
Product Summary
- Foldable, lightweight frame for easy portability. (Figure A)
- Steel double cross-brace frame.
- Adjustable-tension back upholstery.
- Armrests are padded, adjustable and removable.
- Adjustable-length controller mount.
- Adjustable-tension back upholstery.
- Swing-away footrests with heel loops.
- Optional elevating leg rests (Item #CPELR) sold separately.
- Optional 2" seat depth extension (Model #STDS1818N) sold separately.
- Positioning belt included.
- Padded back upholstery with storage pouch and cushioned seat.
- Programmable controller.
- Flat-free, non-marking tires.
- Easy free-wheel operation.
- Manual wheel locks.
- General foam seat cushion included.
- Anti-tip wheels.
Please visit the store for more information or call us at: (905) 828-1980

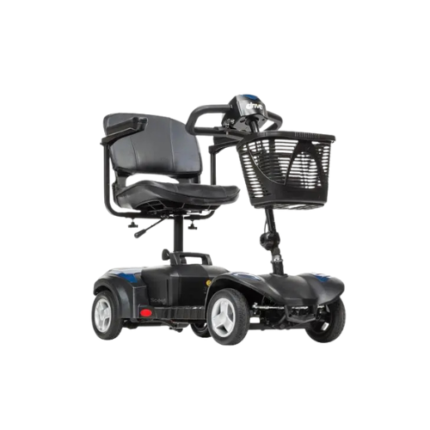

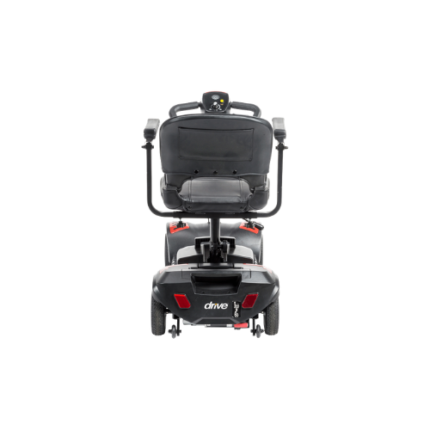

Scout 4
Product Summary
- Quick and easy disassembly. (Figure A)
- Color-through color panels hide scuffs and scratches.
- Armrests are padded and adjustable.
- Quick connect batteries.
- Ergonomic throttle control.
- Height-adjustable swivel seat with fold-down backrest.
- Flat-free, non-marking tires.
- Large, plastic carry basket.
- Easy-to-adjust tiller.
- Anti-tip wheels.
- Delta tiller.
- Easy free wheel operation.
- Available with 12AH or 20AH batteries.
- 20AH batteries increase scooter's maximum range.
Please visit the store for more information or call us at: (905) 828-1980

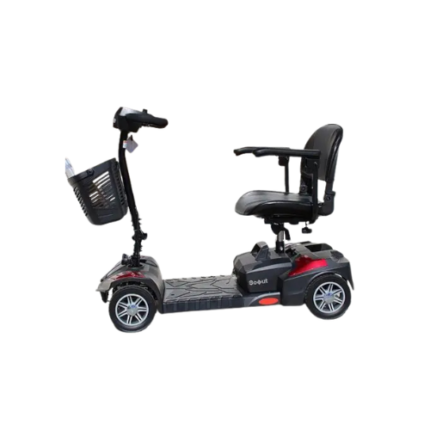

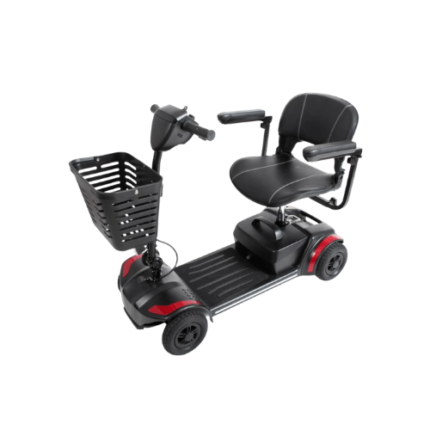

Scout 4 – DLX
