Ventura 3
Product Summary
- Includes interchangeable color panels in Red and Blue. (Figure A)
- Armrests are padded and adjustable.
- Floorboard with 23” of foot space.
- Ergonomic throttle control.
- Height-adjustable swivel seat with fold-down backrest.
- Flat-free, non-marking tires.
- Seat position can be adjusted forward or backward.
- Rear suspension.
- Programmable controller.
- Large, plastic carry basket.
- Easy-to-adjust tiller.
- Anti-tip wheels.
- Headlight.
- Delta tiller.
- Easy freewheel operation.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0807 |
|---|---|
| Weight Capacity | 350 lbs. |
| Top Speed | 6 mph |
| Maximum Range | 15 miles |
| Turning Radius | 53” |
| Climbing Angle | 7.5° |
| Ground Clearance | 2.5” |
| Dimensions | 48” (L) x 25” (W) |
| Floor-to-Seat Height | 21.5” – 23.5” |
| Seat Type | Folding |
| Seat Dimensions | 18” (W) x 17.5” (D) |
| Motor | 24V x 350W x 5100 rpm |
| Batteries (pair) | 12V x 33AH |
| Charger | 4A Offboard |
| Brakes | Electromagnetic |
| Front Wheels | 10” x 3” Flat-free |
| Rear Wheels | 10” x 3” Flat-free |
| Base Weight | 88 lbs. |
| Battery Weight (pair) | 28 lbs. |
| Seat Weight | 26 lbs. |
| Total Weight | 142 lbs. |
| Warranty on Frame | Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 Months |
| Warranty on Batteries | 6 Months |
Downloads
Downloads
Owners Manual
Catalog Page

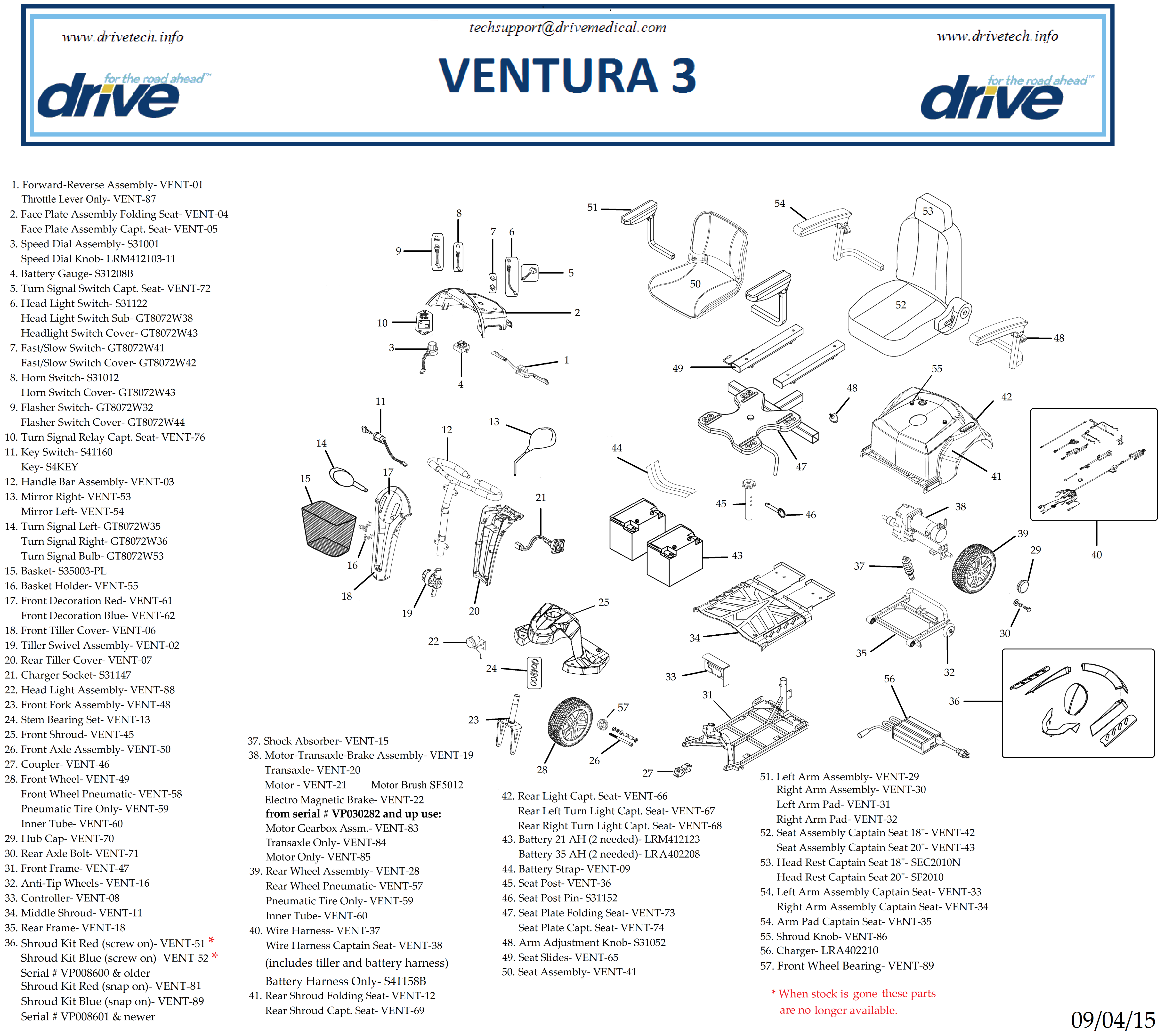

Parts Diagram
Start Guide
Order Form
Download Video
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| VENTURA318FS | Select | 18″ Folding Seat | K0807 | 1/cs |
