Semi-Electric Bed (Single Crank)
Product Summary
- Quiet, smooth operation, Head/Foot section adj. electronically. Height adjusts manually.
- Easy to set up. Bed ships in two cartons. Shaft stores under frame when unassembled.
- Channel frame construction provides superior strength and reduced weight.
- Reinforced frame resists twisting and bending. Zinc-coated spring deck for Pt comfort.
- Heavy-duty bed ends; attractive, easy-to-maintain, interchangeable w/Invacare®/Sunrise®.
- Clip-on pendant mounts on bed rail, operate Head and Foot section simultaneously.
- Half rails and full rails available. (Sold separately) (Figure A – B).
- Motor is UL Approved, Manufactured in ISO9001 facility.
Specifications
Specifications
| Bed Height | 16″ – 24.5″ |
|---|---|
| Unit Dimensions | 36″ (W) x 88″ (L) |
| Weight | 170 lbs. |
| Carton Shipping Weight | 185 lbs. |
| Weight Limit | 450 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc. |
| Warranty | (Original Purchaser) Limited Lifetime on Welds, 5 Years on Frame, 1 Year on All Other Parts and Components |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| 15004 | Select | Semi-Electric Bed | E0295 | 1/cs |
| 15004BV-FR | Select | Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) | E0261 | 1/cs |
| 15004BV-HR | Select | Semi-Electric Bed with Half Rails (item #15201BV) | E0261 | 1/cs |
| 15004BV-PKG | Select | Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Innerspring Mattress (item #15006) | E0260 | 1/cs |
| 15004BV-PKG-T | Select | Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Therapeutic Support Mattress (item #15019) | E0260 | 1/cs |
| 15004BV-PKG-1 | Select | Semi-Electric Bed with Half Rails (item #15201BV) and 80″ Innerspring Mattress (item #15006) | E0260 | 1/cs |
| 15004BV-PKG-1-T | Select | Semi-Electric Bed with Half Rails (item #15201BV) and 80″ Therapeutic Support Mattress (item #15019) | E0260 | 1/cs |
| 15004BV-PKG-2 | Select | Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Foam Mattress (item #15007) | E0260 | 1/cs |

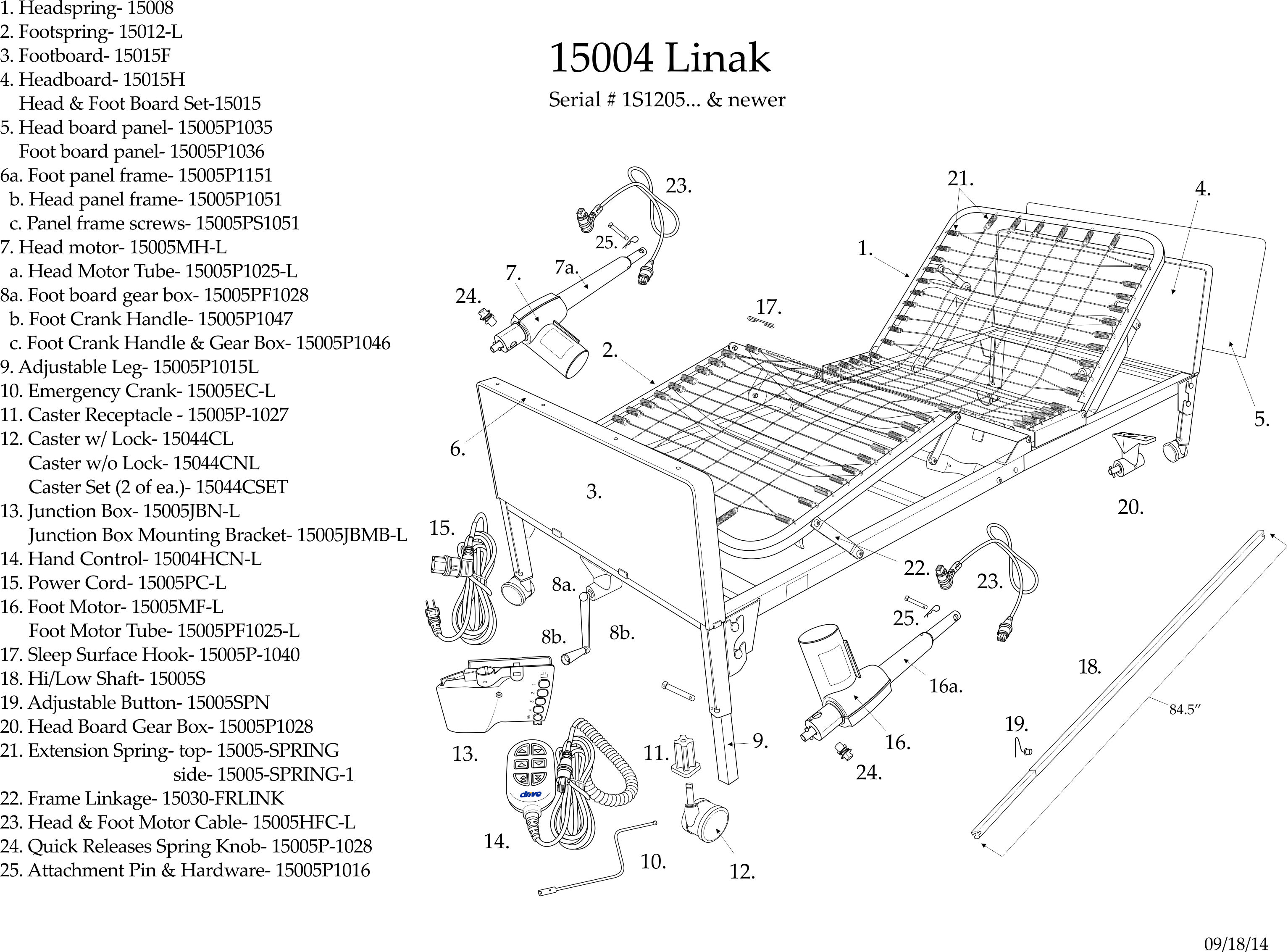

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Headspring | 15008 |
| 2 | Select | Footspring | 15012-L |
| 3 | Select | Footboard | 15015F |
| 4 | Select | Headboard | 15015H |
| 4 | Select | Head & Foot Board Set | 15015 |
| 5 | Select | Head board panel | 15005P1035 |
| 5 | Select | Foot board panel | 15005P1036 |
| 6a | Select | Foot panel frame | 15005P1151 |
| 6b | Select | Head panel frame | 15005P1051 |
| 6c | Select | Panel Screw | 15005PS1051 |
| 7 | Select | Head motor | 15005MH-L |
| 7a | Select | Head Motor Tube | 15005P1025-L |
| 8a | Select | Foot board gear box | 15005PF1028 |
| 8b | Select | Foot Crank Handle | 15005P1047 |
| 8c | Select | Foot Crank Handle & Gear Box | 15005P1046 |
| 9 | Select | Adjustable leg | 15005P1015L |
| 10 | Select | Emergency crank | 15005EC-L |
| 11 | Select | Receptacle for caster | 15005P-1027 |
| 12 | Select | Caster with lock | 15044CL |
| 12 | Select | Caster without lock | 15044CNL |
| 12 | Select | Caster Set | 15044CSET |
| 13 | Select | Junction Box | 15004JBN-L |
| 13 | Select | Junction box mounting bracket | 15005JBMB-L |
| 14 | Select | Hand Control | 15004HCN-L |
| 15 | Select | Power cord | 15005PC-L |
| 16 | Select | Foot motor | 15005MF-L |
| 16 | Select | Foot Motor Tube | 15005PF1025-L |
| 17 | Select | Sleep surface hook | 15005P-1040 |
| 18 | Select | Hi/Low shaft | 15005S |
| 19 | Select | Adjustment Button | 15005SPN |
| 20 | Select | Head & Foot Board Gear Box | 15005P1028 |
| 21 | Select | Top Spring | 15005-SPRING |
| 21 | Select | Side Spring | 15005-SPRING-1 |
| 22 | Select | Frame Linkage | 15030-FRLINK |
| 23 | Select | Head & Foot Motor Cable | 15005HFC-L |
