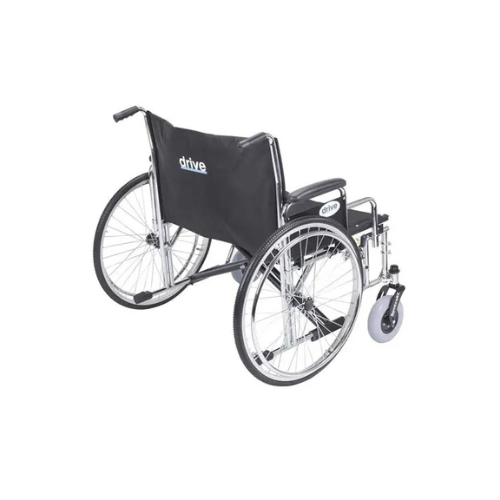

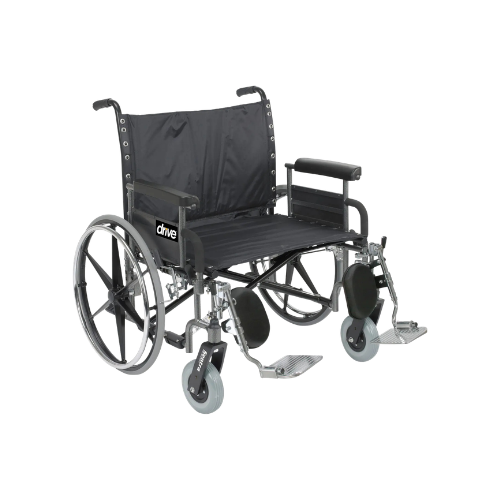

Bariatric Deluxe Sentra Heavy-Duty, Extra-Extra-Wide Wheelchair
Description
- Powder-coated silver vein frame.
- Reinforced steel gussets at all weight bearing points provide additional strength.
- Durable reinforced nylon upholstery.
- Steel, Mag-style wheels are strong and maintenance free.
- Heavy-duty, flat-free 8″ front casters are adjustable in two positions.
- Extra-heavy-duty front forks.
- Dual axle provides easy transition of seat to hemi-level.
- Reinforced side frame, caster journals and dual cross bars.
- Precision sealed wheel bearings in front and rear ensure long-lasting performance and reliability.
- Extra-large, contoured plastic armrests provide comfort and support.
- Riggings have extra-large, heavy-duty, aluminum tapered foot plates that provide maximum support, are attractive and crack proof. (Must be ordered separately)
- Footrests are tapered for comfort.
- Comes with push-to-lock wheel locks.
- Weight Capacity 700 lbs.
Products
Products
| Item # | Seat Width | Armrest | Product Front Riggings | HCPCS* | UOM | |
|---|---|---|---|---|---|---|
| STD26DDA | Select | 26″ | Detachable Desk Arm | Riggings Sold Separately | K0007+E2202 | 1/cs |
| STD26DFA | Select | 26″ | Detachable Full Arm | Riggings Sold Separately | K0007+E2202 | 1/cs |
| STD28DDA | Select | 28″ | Detachable Desk Arm | Riggings Sold Separately | K0007+K0108 | 1/cs |
| STD30DDA | Select | 30″ | Detachable Desk Arm | Riggings Sold Separately | K0007+K0108 | 1/cs |
| STD30DFA | Select | 30″ | Detachable Full Arm | Riggings Sold Separately | K0007+K0108 | 1/cs |
Front Riggings
| Item # | Description | UOM | |
|---|---|---|---|
| HDSF | Select | Aluminum Foot plate | 1/pr |
| HDELR | Select | ELR Set, HD | 1/pr |
Anti Tippers
| Item # | Description | UOM | |
|---|---|---|---|
| STDS829 | Select | Anti-Tippers With Wheels, Chrome | 1/pr |
Bariatric Seat Belts
| Item # | Description | UOM | |
|---|---|---|---|
| STDS855 | Select | Seat Belts, Auto-Clasp Type Closure, Bariatric | 1/ea |
| STDS856 | Select | Seat Belts, Hook and Loop Fastener Type Closure, Bariatric | 1/ea |
Heel Loops
| Item # | Description | UOM | |
|---|---|---|---|
| STDS831 | Select | Heel Loops | 1/bx |
Wheel Lock Extensions
| Item # | Description | UOM | |
|---|---|---|---|
| STDS801 | Select | Wheel Lock Extension | 1/ea |
Wheelchair Cane/Crutch Holder
| Item # | Description | UOM | |
|---|---|---|---|
| STDS1034 | Select | Wheelchair Cane/Crutch Holder | 1/ea |
Universal Oxygen “E” Cylinder Holder
| Item # | Description | UOM | |
|---|---|---|---|
| STDS803 | Select | Universal Oxygen “E” Cylinder Holder | 1/ea |
Specifications
Specifications
| Width Open with 26″ Seat | 35″ |
|---|---|
| Width Open with 28″ Seat | 37″ |
| Width Open with 30″ Seat | 39″ |
| Width Closed | 14.5″ |
| Height | 38″ |
| Seat-To-Floor Height | 17″ – 19″ |
| Back Height | 16″ |
| Seat Depth | 20″ |
| Length with Riggings | 47″ |
| Product Weight with 26″ Seat | 87 lbs. |
| Product Weight with 28″ Seat | 88 lbs. |
| Product Weight with 30″ Seat | 89 lbs. |
| Carton Shipping Weight with 26″ Seat | 102 lbs. |
| Carton Shipping Weight with 28″ Seat | 103 lbs. |
| Carton Shipping Weight with 30″ Seat | 104 lbs. |
| Weight Limit | 700 lbs. |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Form
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]
Parts
Parts
Parts for Bariatric Deluxe Sentra Heavy-Duty, Extra-Extra-Wide Wheelchair
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Back upholstery 26″ | STDS2389BLK |
| 1 | Select | Back upholstery 28″ | STDS2391BLK |
| 2 | Select | Handgrip | STDS871 |
| 4 | Select | Wheel assembly | STDS1076 |
| 5 | Select | Rear bearing hub cap | STDS2A5301 |
| 6 | Select | Rear axle bolt & nut | STDS2A5302 |
| 7 | Select | Rear wheel bearing | STDS2A5303 |
| 8 | Select | tipping sleeve | STDS4020 |
| 9 | Select | Handrail, Chrome | STDS2A5310 |
| 10 | Select | Handrail screw and spacer | STDS2A5311 |
| 11 | Select | Caster and fork | STDS1077 |
| 11 | Select | Caster only | STDS2A5320 |
| 12 | Select | Fork only | STDS2A5321 |
| 13 | Select | cross brace bolt | STDS001061 |
| 14 | Select | Crossframe 26″ | STDS2A5326 |
| 14 | Select | Crossframe 28″ | STDS2A5328 |
| 14 | Select | Crossframe 30″ | STDS2A5330 |
| 15 | Select | Front axle bolt & nut | STDS2A5304 |
| 16 | Select | Front caster bearings | STDS2055 |
| 17 | Select | Fork stem bearings | STDS2050 |
| 18 | Select | Lock nut for fork | STDS2A5316 |
| 19 | Select | Dust cap for fork | STDS2A5323 |
| 21 | Select | Arm release lever | STDS2A5337 |
| 22 | Select | Seat upholstery 26″ | STDS2388BLK |
| 22 | Select | Seat upholstery 28″ | STDS2390BLK |
| 22 | Select | Seat upholstery 30″ | STDS2392BLK |
| 23 | Select | Upholstery screw | STDS2A5300 |
| 24 | Select | Arm rest assm. Right | STDSHDDDAR |
| 24 | Select | Arm rest assm. Left | STDSHDDDAL |
| 24a | Select | Arm rest pad, desk length | STDS2A5333 |
| 24a | Select | Arm rest pad, Full length | STDS2A5331 |
| 24b | Select | Arm rest pad bolts | STDS2A5334 |
| 24d | Select | Arm rest pad, foam | STDS2A5336 |
| 25 | Select | Seat rail saddle | STDS4058 |
| 26 | Select | Crossframe assist 26″ | STDS2A5306 |
| 26 | Select | Crossframe assist 28″ | STDS2A5308 |
| 26 | Select | Crossframe assist 30″ | STDS2A5350 |
| 27 | Select | Brake assm. Right | STDS4032R |
| 27 | Select | Brake assm. Left | STDS4032L |
| 27a | Select | rubber tip | STDS4011 |
| 28 | Select | Frame bumper | STDS000026 |
| 30 | Select | ELR adjustment lever (right) | STDS2A536R |
| 30 | Select | ELR adjustment lever (left) | STDS2A536L |
| 33 | Select | Footplate right | STDS2A5351 |
| 33 | Select | Footplate left | STDS2A5353 |
| 34 | Select | Footrest Bumper | STDS1026 |
| 35 | Select | Calf pad, Nylon, Black | STDS2007HD |
| 36 | Select | Side Frame Right | STDS2A531R |
| 36 | Select | Side Frame Left | STDS2A531L |
| Select | Back upholstery 30″ | STDS2393BLK’ |
