MyDiaper Blue
Price range: $29.00 through $100.00

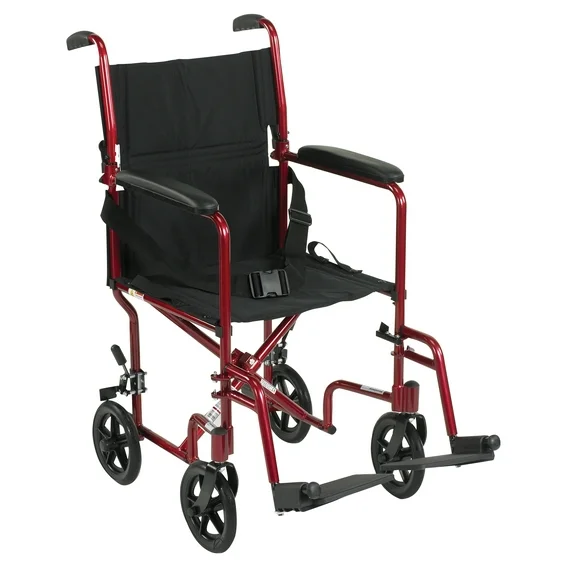

Lightweight Transport Wheelchair 19″
$185.63
Product Summary
The Aluminum Transport Chair by Drive Medical is lightweight and strong, making it easy to transport. The black, nylon upholstery is comfortable, lightweight and easy to clean. The wheels are lightweight, maintenance free and provide a smooth ride over most surfaces. It comes standard with swing away footrests and padded armrests to provide additional comfort and rear wheel locks to ensure safety. Easily folds for convenient storage and transportation.
Features
- Aluminum casted back release hinge allows back to fold down for easy storage and transport
- Aluminum frame is lightweight and strong
- Back folds down for storage and transport
- Both 17″ and 19″ come with swing-away footrests
- Comes with seat belt for added safety
- Composite 8″ wheels are lightweight and maintenance free
- Nylon upholstery is comfortable, lightweight and easy to clean
- Padded armrests provide additional comfort
- Standard rear wheel locks
- Weighs only 19 lbs
Additional information
| Select |
Blue Frame ,Silver Frame ,Red Frame ,Black Frame |
|---|
Products
Products
| Item # | Seat Width | Color | UOM |
|---|---|---|---|
| ATC17-BK | 17″ | Black Frame and Black Upholstery | 1/cs |
| ATC17-BL | 17″ | Blue Frame and Black Upholstery | 1/cs |
| ATC17-RD | 17″ | Red Frame and Black Upholstery | 1/cs |
| ATC17-SL | 17″ | Silver Frame and Black Upholstery | 1/cs |
| ATC19-BK | 19″ | Black Frame and Black Upholstery | 1/cs |
| ATC19-BL | 19″ | Blue Frame and Black Upholstery | 1/cs |
| ATC19-RD | 19″ | Red Frame and Black Upholstery | 1/cs |
| ATC19-SL | 19″ | Silver Frame and Black Upholstery | 1/cs |
Specifications
Specifications
| Overall Width (ATC17) | 20″ (open) | 9″ (closed) |
|---|---|
| Overall Width (ATC19) | 22″ (open) | 9″ (closed) |
| Seat-To-Floor Height | 19″ |
| Seat Dimensions (ATC17) | 17″ (W) x 16″ (D) |
| Seat Dimensions (ATC19) | 19″ (W) x 16″ (D) |
| Weight | 19 lbs. |
| Overall Length w/ Riggings | 33″ |
| Overall Height | 39.5″ |
| Carton Shipping Weight | 24 lbs. |
| Weight Limit | 300 lbs. |
| Warranty | Limited Lifetime |
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]

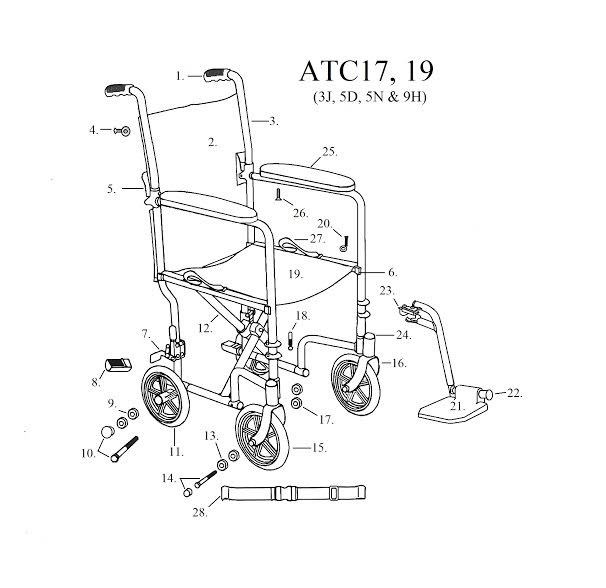

Parts
Parts
| Diagram Number | Part Description | Part Number |
|---|---|---|
| 1 | Handgrip | STDS871 |
| 2 | Back Upholstery 17″ | STDS3J0917 |
| 2 | Back Upholstery 19” | STDS3J0919 |
| 3 | Push Handle Black | STDS5D09K7 |
| 3 | Push Handle Blue | STDS5D09B7 |
| 3 | Push Handle Red | STDS5D09R7 |
| 3 | Push Handle Silver | STDS5D09S7 |
| 4 | Back Upholstery Screws (8) | STDS5D5504 |
| 5 | Folding Cane Hinge | STDS5D0914 |
| 6 | Seat Rail Guide | STDS5D1070 |
| 7 | Brake Left | STDS5D092L |
| 7 | Brake Right | STDS5D092R |
| 7 | Brake Tip | STDS8M4603 |
| 8 | tipping sleeve | STDS4020 |
| 10 | Rear Axle | STDS5D0907 |
| 10 | Hub Cap | STDS3J0900 |
| 11 | Rear Wheel | STDS3J3910 |
| 12 | Cross Frame 19″ | STDS5D09X9 |
| 13 | Wheel Bearing | STDS1011 |
| 14 | Caster axle bolt | STDS1002-1 |
| 14 | Axle Cap | STDS001000 |
| 15 | Caster | STDS3J3900 |
| 16 | Fork | STDS3J0904 |
| 17 | Fork Stern Bearing | STDS8M4601 |
| 18 | Hanger Pin | STDS5D1069 |
| 19 | Seat Upholstery 17″ | STDS3J0927 |
| 19 | Seat Upholstery 19″ | STDS3J0929 |
| 20 | Seat Upholstery Scews (8) | STDS1072-8 |
| 22 | Footrest Bumper | STDS1026 |
| 23 | Footrest Release Lever Left | STDS3J091L |
| 23 | Footrest Release Lever Right | STDS3J091R |
| 24 | Fork Stem Cap | STDS1051 |
| 25 | Arm Pad- Full | STDSFLNB |
| 26 | arm pad bolts | STDS002001 |
| 28 | Seat Belt | STDS850-PB |
| 28 | Footrest Black | ATCSFBK |
| 28 | Footrest Blue | ATCSFBL |
| 28 | Footrest Red | ATCSFR |
| 28 | Footrest Silver | ATCSFSL |
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Handgrip | STDS871 |
| 2 | Select | Back Upholstery | STDS5D5501 |
| 3 | Select | Push Handle Blue | STDS5D5502 |
| 3 | Select | Push Handle Red | STDS5D5503 |
| 4 | Select | Back Upholstery Screws (8) | STDS5D5504 |
| 5 | Select | Folding Cane Hinge | STDS5D0914 |
| 7 | Select | Wheel Brake Left | STDS5D5505 |
| 7 | Select | Wheel Brake Right | STDS5D5506 |
| 8 | Select | tipping sleeve | STDS4020 |
| 9 | Select | Rear Axle Bearings | STDS5D5507 |
| 10 | Select | Rear Hub Cap | STDS5D5508 |
| 11 | Select | Rear Axle Bolt /sleeve | STDS5D5509 |
| 12 | Select | Rear Wheel | STDS5D5510 |
| 13 | Select | Cross frame Blue | STDS5D5511 |
| 13 | Select | Cross frame Red | STDS5D5512 |
| 14 | Select | Front Axle Bearings | STDS5D5513 |
| 15 | Select | Front Axle | STDS5D5514 |
| 16 | Select | Front Caster | STDS5D5515 |
| 17 | Select | Front Fork Blue | STDS5D5516 |
| 17 | Select | Front Fork Red | STDS5D5517 |
| 18 | Select | Fork Stem Bearing | STDS5D5518 |
| 19 | Select | Hanger Pin | STDS5D1069 |
| 20 | Select | Seat Upholstery 19″ | STDS3J0929 |
| 21 | Select | Seat Upholstery Screws | STDS5D5519 |
| 23 | Select | Hand Brake/Cable | STDS5D5520 |
| 24 | Select | Footrest Release Lever Right | STDS3J091R |
| 24 | Select | Footrest Release Lever Left | STDS3J091L |
| 25 | Select | Fork Stem Cap | STDS3J0909 |
| 26 | Select | Seat Rail Guide | STDS1070 |
| 27 | Select | Arm Pad- Full | STDSFLVB |
| 29 | Select | arm pad bolts | STDS002001 |
| 29 | Select | Footrest Pair Red | EXPLTSF-RD |
| 29 | Select | Footrest Pair Blue | EXPLTSF-RL |
