Lightweight Expedition Aluminum Transport Chair
Product Summary
- Weighs only 19 lbs.
- Available in blue or red frames.
- Folds flat for easy transport. (Figure A)
- Handy lever on chair back makes it easy and convenient to fold back down. (Figure B)
- Comes with seat belt.
- Companion activated wheel locks.
- 12” rear “flat-free” wheels.
Products
Specifications
Specifications
| Overall Width | 22″ (open) | 10.75″ (closed) |
|---|---|
| Overall height | 38″ |
| Seat-To-Floor Height | 19″ |
| Back Height | 18″ |
| Seat Dimensions | 19″ (W) x 16″ (D) |
| Overall Length w/Riggings | 38″ |
| Weight | 19 lbs. |
| Carton Shipping Weight | 24 lbs. |
| Weight Limit | 300 lbs. |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page

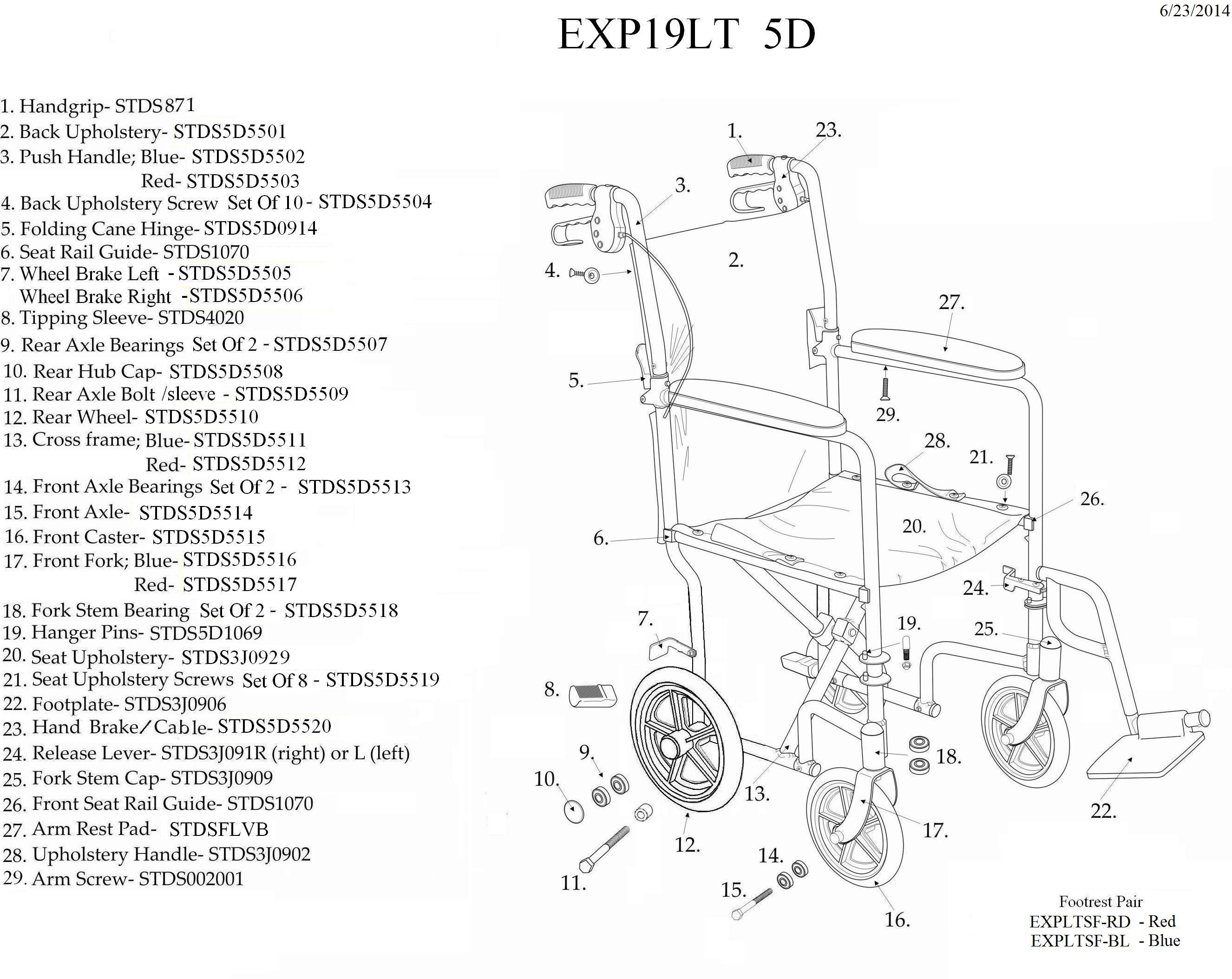

Parts Diagram
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]
Parts
Parts

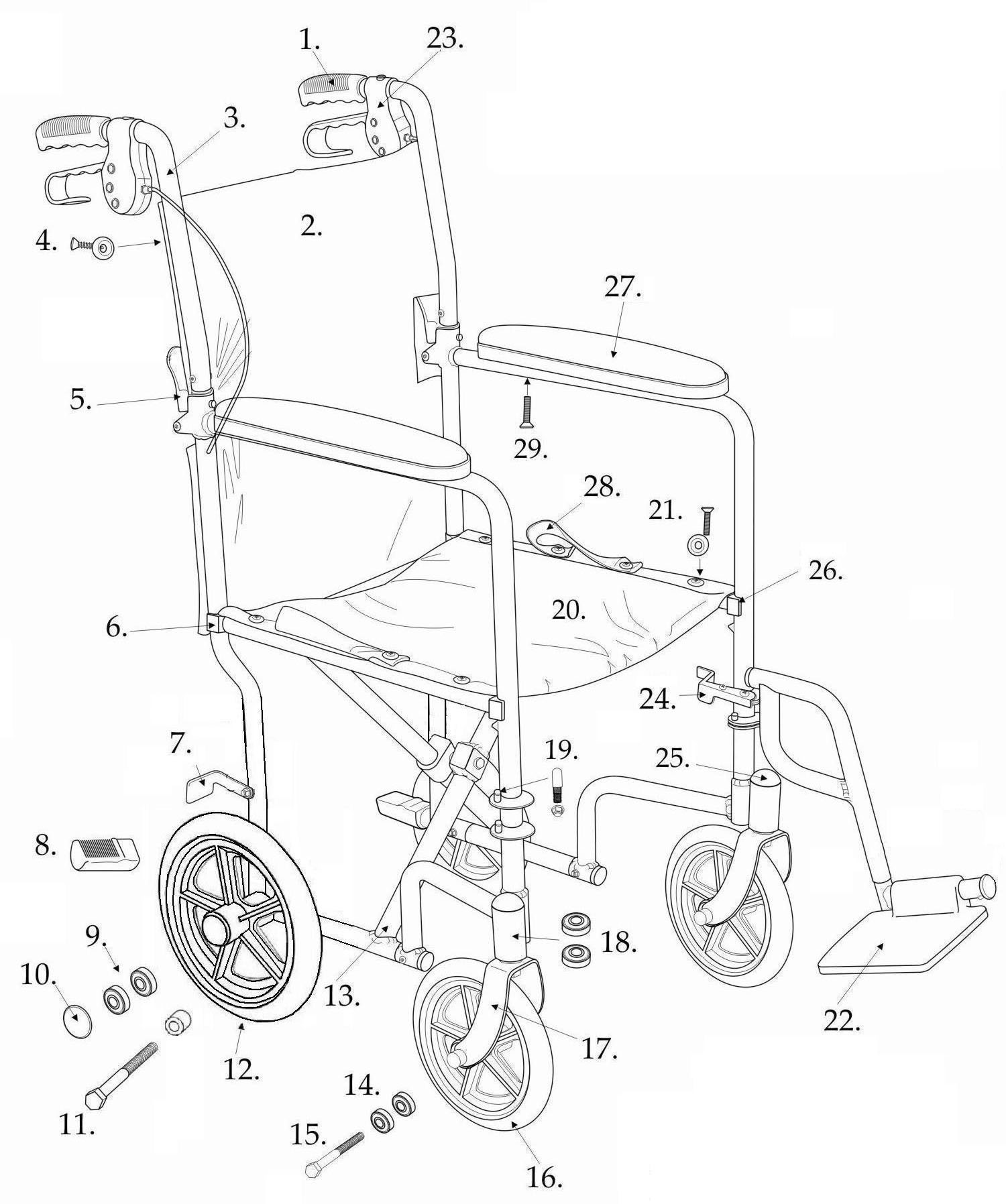

| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Handgrip | STDS871 |
| 2 | Select | Back Upholstery | STDS5D5501 |
| 3 | Select | Push Handle Blue | STDS5D5502 |
| 3 | Select | Push Handle Red | STDS5D5503 |
| 4 | Select | Back Upholstery Screws (8) | STDS5D5504 |
| 5 | Select | Folding Cane Hinge | STDS5D0914 |
| 7 | Select | Wheel Brake Left | STDS5D5505 |
| 7 | Select | Wheel Brake Right | STDS5D5506 |
| 8 | Select | tipping sleeve | STDS4020 |
| 9 | Select | Rear Axle Bearings | STDS5D5507 |
| 10 | Select | Rear Hub Cap | STDS5D5508 |
| 11 | Select | Rear Axle Bolt /sleeve | STDS5D5509 |
| 12 | Select | Rear Wheel | STDS5D5510 |
| 13 | Select | Cross frame Blue | STDS5D5511 |
| 13 | Select | Cross frame Red | STDS5D5512 |
| 14 | Select | Front Axle Bearings | STDS5D5513 |
| 15 | Select | Front Axle | STDS5D5514 |
| 16 | Select | Front Caster | STDS5D5515 |
| 17 | Select | Front Fork Blue | STDS5D5516 |
| 17 | Select | Front Fork Red | STDS5D5517 |
| 18 | Select | Fork Stem Bearing | STDS5D5518 |
| 19 | Select | Hanger Pin | STDS5D1069 |
| 20 | Select | Seat Upholstery 19″ | STDS3J0929 |
| 21 | Select | Seat Upholstery Screws | STDS5D5519 |
| 23 | Select | Hand Brake/Cable | STDS5D5520 |
| 24 | Select | Footrest Release Lever Right | STDS3J091R |
| 24 | Select | Footrest Release Lever Left | STDS3J091L |
| 25 | Select | Fork Stem Cap | STDS3J0909 |
| 26 | Select | Seat Rail Guide | STDS1070 |
| 27 | Select | Arm Pad- Full | STDSFLVB |
| 29 | Select | arm pad bolts | STDS002001 |
| 29 | Select | Footrest Pair Red | EXPLTSF-RD |
| 29 | Select | Footrest Pair Blue | EXPLTSF-RL |
