Duet Rollator/Transport Chair, 8″ Casters
Product Summary
- Combines the features of a rollator and transport chair in one unit. An individual can ambulate independently or be pushed safely by a caregiver.
- To use as a transport chair the Duet has locking flip-up armrests (Figure A – Figure C) and a flip-down footrest (Figure D) to aid the user. A safety lock release is used to store the arms and a hook and loop fastener strap is used to store the footrest while using the Duet for ambulation.
- The tool-free two-position contoured padded backrest is reversible depending on whether you are using the Duet as a rollator or in transport chair mode.
- Comes with padded seat with carry pouch for added privacy and security of personal items. Inside the pouch is a handle to aid with the folding.
- The folding frame has a lock-out feature to ensure the unit stays open while in use and ensures the unit will stay folded during transport.
- 8″ casters are ideal for indoor and outdoor use.
- Handles are adjustable in height, with self-threading knob. (Figure E)
Products
Products
| Item # | Color | HCPCS* | UOM | |
|---|---|---|---|---|
| 795B | Select | Blue | E0143+E0156 | 1/cs |
| 795BK | Select | Black | E0143+E0156 | 1/cs |
| 795BU | Select | Burgundy | E0143+E0156 | 1/cs |
Specifications
Specifications
| Overall Dimensions | 25.5″ (W) x 37″ (H) x 26″ (L) |
|---|---|
| Seat To-Floor Height | 21″ |
| Handle Height | 31.5″ – 37″ |
| Back Height | 35″ |
| Seat Dimensions | 13.5″ (W) x 13″ (D) |
| Weight | 20 lbs. |
| Carton Shipping Weight | 25 lbs. |
| Weight Limit | 300 lbs. |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page

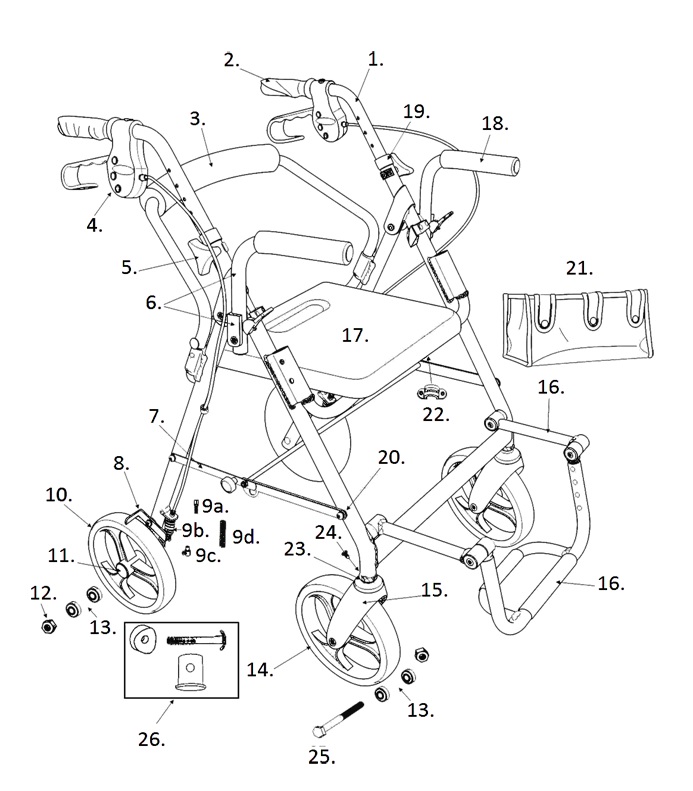

Parts Diagram
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Handle Bar 1A & 2Y ser# Left | 9501A79511 |
| 1 | Select | Handle Bar 1A & 2Y ser # Right | 9501A79512 |
| 1 | Select | Handlebar 2M ser# | 750HBAR-2M |
| 2 | Select | Handgrip- Lt. | 950340089901 |
| 2 | Select | Handgrip- Rt. | 950340079901 |
| 3 | Select | Backrest | 9501A79501 |
| Select | Brake Assy. 1A & 2Y ser # left | 750BCL | |
| 4 | Select | Brake Assy. 2M ser # left | 750BCL-2M |
| Select | Height Adjustment Knob: 1 piece | 10208KN | |
| 6 | Select | Elboy Rest Assembly 1A & 2Y ser # left | 9501A7951L |
| 6 | Select | Elbow Rest Assembly 1A & 2Y ser # Right | 9501A7951R |
| 6 | Select | Elbow Rest Assm. 2M ser # Left | 9502M7951L |
| 6 | Select | Elbow Rest Assm. 2M ser # right | 9502M7951R |
| 7 | Select | Folding Hinge Assm. Includes rod and both side bars | 9501A79502 |
| 8 | Select | Wheel Brake, Lt. | 9501A7502L |
| 8 | Select | Wheel Brake, Rt. | 9501A7502R |
| 9 | Select | a. Cable Adjuster | 9500001232 |
| 9 | Select | b. Spring Boot | 9501A7503 |
| 9 | Select | c. Cable Fastener | 9500004101 |
| 9 | Select | d. Cable Spring | 951021820000 |
| 11 | Select | Rear Axle Cap | 9501A75005 |
| 12 | Select | Rear Axle Nut | 9500075009 |
| 13 | Select | Wheel Bearing | STDS1011 |
| 14 | Select | Front Wheel | 9501A75007 |
| 15 | Select | Fork 1A @ 2Y ser # | 750FORK |
| 15 | Select | Fork 2M ser # | 750FORK-2M |
| 16 | Select | Footrest Assembly 1A & 2Y ser # Red | 9501A7953R |
| 16 | Select | Footrest Assembly 1A & 2Y ser # blue | 9501A7953B |
| 16 | Select | Footrest Assembly 1A & 2Y ser # black | 9501A7953BK |
| 16 | Select | Footrest Assembly 2M ser # Red | 9501A7953R-2M |
| 16 | Select | Footrest Assembly 2M ser # Blue | 9501A7953B-2M |
| Select | Seat | 795SEAT | |
| 18 | Select | Elbow Pad | 9501A79505 |
| 19 | Select | Anti-Rattler | 950300169901 |
| 21 | Select | Tote Bag 1A & 2Y ser # | 9501A79504 |
| 21 | Select | Tote Bag 2M ser # | 9501A79504-2M |
| 22 | Select | Seat Bracket 2M ser# | 9501A79513-2M |
| 23 | Select | Fork Fastener 1A & 2Y ser # with set screw | 9501A79510 |
| 23 | Select | Fork Fastener 1A & 2Y ser # with roll pin | 9501A79510-RP |
| 23 | Select | Fork Fastener 2M ser # | 9501A79510-2M |
| 24 | Select | Set Screw | 9501A795010 |
| 25 | Select | Front Axle | 9500075010 |
| 26 | Select | Rear Axle Assembly 1A & 2Y ser # | 9501A79506 |
| 26 | Select | Rear Axle Assembly 2M ser # | 9501A79506-2M |
| Select | Brake 2m ser # | 750BRAKE-2M | |
| Select | Rear Wheel | 950175008 | |
| Select | Brake 1A & 2Y ser # | 750BRAKE | |
| Select | Seat Bracket 1A & 2Y ser# | 9501A75913 | |
| Select | Brake assy. 1A & 2Y ser # right | 750BCR | |
| Select | Folding Hinge Bolt | 950179504 |
