Full-Electric LTC Bed
Product Summary
- Designed for long term care use.
- Separate bed height and head and foot section adjustment.
- Three motors provide quiet, smooth operation.
- 80″ x 36″ spring deck surface.
- Durable powder-coated epoxy finish.
- Bed rests on stabilizing legs in lowest position.
- Equipped with locking casters.
- Shown with ¼ rails and optional head and foot boards. (Sold separately)
- Sturdy attractive head and footboards. (Sold separately)
- UL Listed.
- 450 lbs. Weight Capacity.
Specifications
Specifications
| Bed Height | 15″ – 26″ |
|---|---|
| Unit Dimensions | 36″ (W) x 87″ (L) |
| Weight | 166 lbs. |
| Carton Shipping Weight | 185 lbs. |
| Weight Limit | 450 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc. |
| Warranty | (Original purchaser) Limited Lifetime on welds and frame, two years on electronics and 1 year on all parts and components |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| 15801SD | Select | Spring Deck for Full-Electric LTC Bed | E0297 | 1/cs |
| 15000HF | Select | Head and Foot Boards for LTC and Low Bed (Sold separately) | 1/cs |

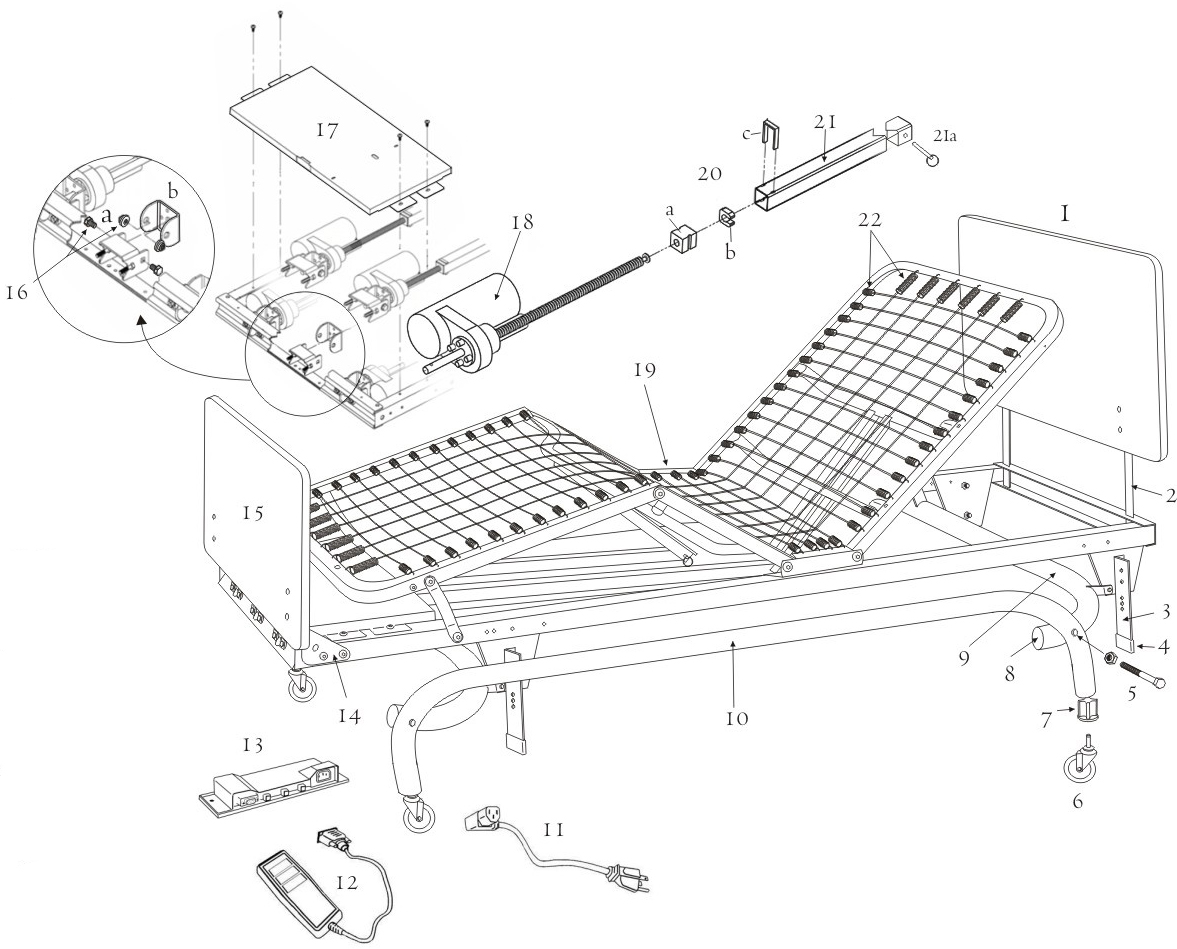

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Headboard | 15000H |
| 1a | Select | Set Head/Footboard | 15000HF |
| 2 | Select | Headboard Bracket | 15000H-B |
| 3 | Select | Leg | 15601-1L |
| 4 | Select | Leg Cap | 15601-02 |
| 5 | Select | Pivot Bolt | 15601-04 |
| 6a | Select | Caster Locking | 15601-00 |
| 6b | Select | Caster Non-locking | 15601-01 |
| 7 | Select | Caster Insert | 15601-03 |
| 8 | Select | End Cap | 15601-05 |
| 9 | Select | U-Lever Frame | 15601-15 |
| 10 | Select | Flex Leg | 15601-16 |
| 11 | Select | Power cord | 15005PC |
| 12 | Select | Hand Control | 15005HC |
| 14a | Select | Footboard Bracket Right | 15000F-BR |
| 14b | Select | Footboard Bracket Left | 15005F-BL |
| 15 | Select | Footboard | 15000F |
| 16a | Select | Mounting Nut & Bolt | 15801-01 |
| 16b | Select | Mounting Bracket | 15801-02 |
| 17 | Select | Motor Cover | 15601-06 |
| 18 | Select | Motor- Hi/Low | 15801-03 |
| 19 | Select | Spring Deck | 15801SD |
| 20a | Select | Main Nut | 15601-10 |
| 20b | Select | Stop Clip | 15601-11 |
| 20c | Select | Retainer | 15601-09 |
| 21 | Select | Torque Tube, Head | 15801-12 |
| 21 | Select | Torque Tube, Foot | 15801-13 |
| 21 | Select | Torque Tube, Hi/Low | 15801-14 |
| 21a | Select | Pin | 15601-13 |
| 22a | Select | Top Spring | 15005-SPRING |
| 22b | Select | Side Spring | 15005-SPRING-1 |
