Full-Electric Bariatric Bed, 48″
Product Summary
- Quiet, smooth operation.
- Heavy-duty frame ensures strength and patient safety.
- All steel construction.
- Larger sleep surface than conventional bed.
- Split-pan design with removable bed ends is easy to set up.
- No tools necessary for set up.
- Hand control (included) provides for multiple bed positioning for patients.
- Emergency manual crank included.
- Low air loss/alternating pressure mattress available.
- “T” rails available. (Sold separately) (Figure A)
- Weight Capacity 750 lbs.
Specifications
Specifications
| Bed Height | 18.25″ – 26.25″ |
|---|---|
| Unit Dimensions | 48″ (W) x 88″ (L) |
| Weight | 312 lbs. |
| Carton Shipping Weight | 343 lbs. |
| Weight Limit | 750 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc. |
| Warranty | (Original Purchaser) Limited Lifetime on Welds, 5 Years on Frame, 1 Year on All Other Parts and Components |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| 15302 | Select | Bariatric Bed | E0302 OR E0304 OR E1399 | 1/cs |
| 15302BV-1HR | Select | Bariatric Bed with 1 pair “T” Rails (item #15021BV) | E0302 | 1/cs |
| 15302BV-PKG | Select | Bariatric Bed Package (contains Bariatric Bed, 48″ Bariatric Foam Mattress, item #15310, and 1 pair “T” Rails, item #15021BV | E0304 | 1/cs |
Parts
Parts

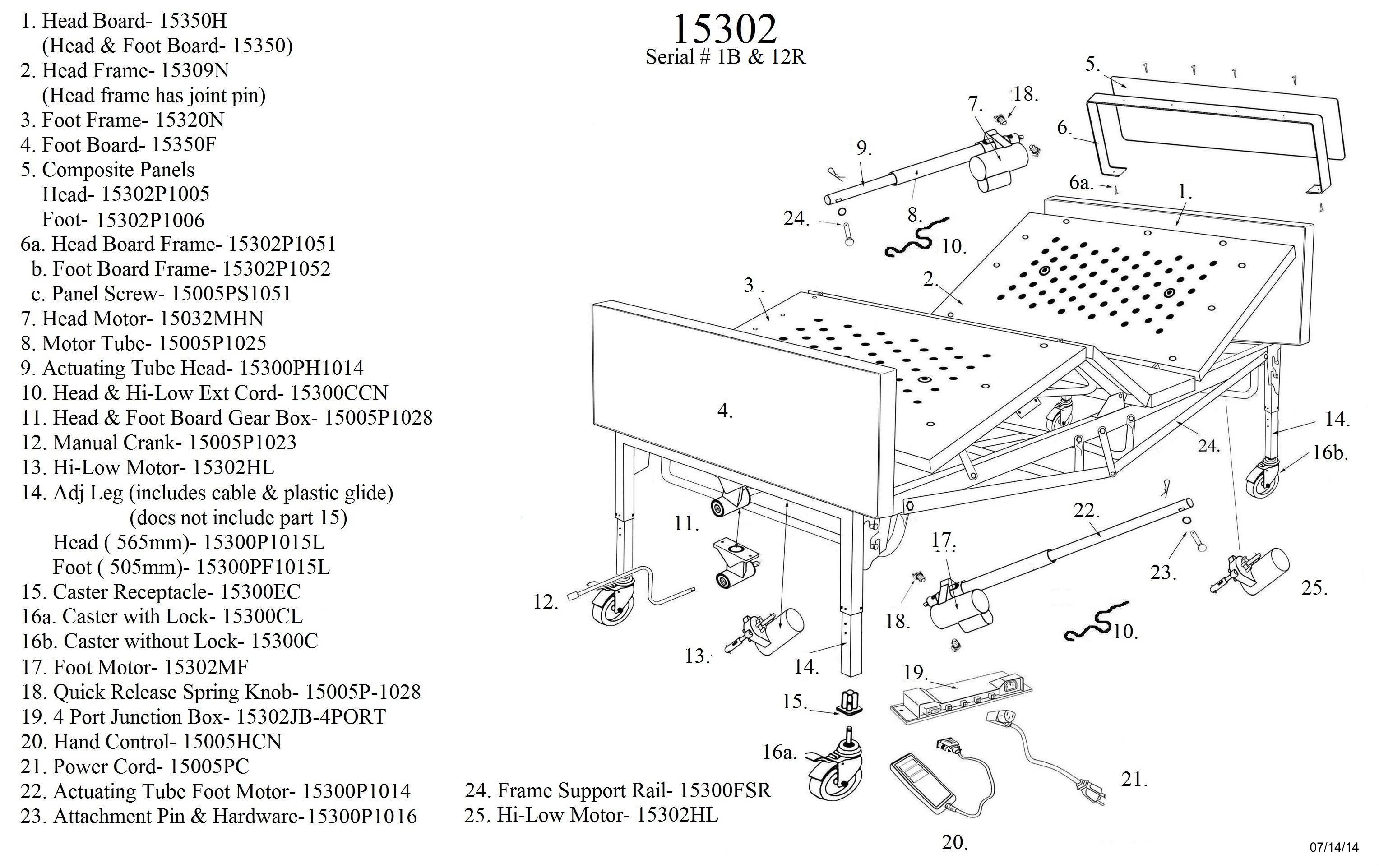

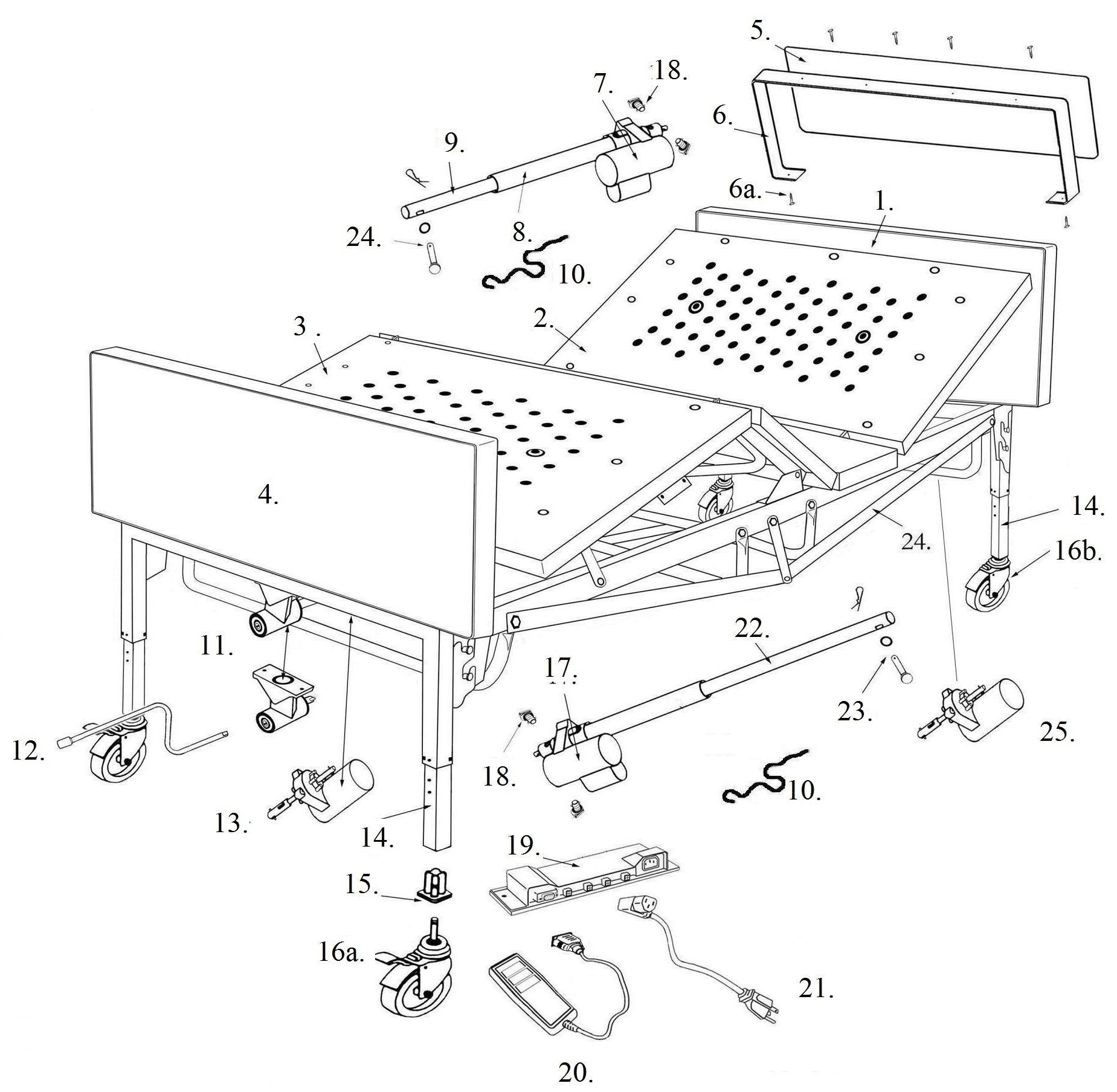

| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Head Board (Head & Foot Board-15350) | 15350H |
| 2 | Select | Head Frame (Head frame has joint pin) | 15309N |
| 3 | Select | Foot Frame | 15320N |
| 4 | Select | Foot Board | 15350F |
| 5 | Select | Composite Panels Head | 15302P1005 |
| 5 | Select | Composite Panels Foot | 15302P1006 |
| 6a | Select | Head Board Frame | 15302P1051 |
| 6b | Select | Foot Board Frame | 15302P1052 |
| 6c | Select | Panel Screw | 15005PS1051 |
| 7 | Select | Head Motor | 15032MHN |
| 8 | Select | Motor Tube | 15005P1025 |
| 9 | Select | Actuating Tube Head | 15300PH1014 |
| 10 | Select | Head & Hi-Low Ext Cord | 15300CCN |
| 11 | Select | Head & Foot Board Gear Box | 15005P1028 |
| 12 | Select | Manual Crank | 15005P1023 |
| 14 | Select | Adj Leg Head ( 565mm) (includes cable & plastic glide) (does not include part 15) | 15300P1015L |
| 14 | Select | Adj Leg Foot ( 505mm) (includes cable & plastic glide) (does not include part 15) | 15300PF1015L |
| 15 | Select | Caster Receptacle | 15300EC |
| 16a | Select | Caster with Lock | 15300CL |
| 16b | Select | Caster without Lock | 15300C |
| 17 | Select | Foot Motor | 15300MF |
| 18 | Select | Quick Release Spring Knob | 15005P-1028 |
| 19 | Select | 4 Port Junction Box | 15302JB-4PORT |
| 20 | Select | Hand Control | 15005HCN |
| 21 | Select | Power cord | 15005PC |
| 22 | Select | Actuating Tube Foot Motor | 15300P1014 |
| 23 | Select | Attachment Pin & Hardware | 15300P1016 |
| 24 | Select | Frame Support Rail | 15300FSR |
| 25 | Select | Hi-Low Motor | 15302HL |
