Full-Electric Bariatric Bed, 42″
Product Summary
- Quiet, smooth operation.
- Heavy-duty frame ensures strength and patient safety.
- All steel construction.
- Larger sleep surface than conventional bed.
- Split-pan design with removable bed ends is easy to set up.
- No tools necessary for set up.
- Hand control (included) provides for multiple bed positioning for patients.
- Low air loss/alternating pressure mattress available.
- “T” rails available. (Sold separately) (Figure A)
- Emergency manual crank included.
- Weight Capacity 600 lbs.
Specifications
Specifications
| Bed Height | 18.25″ – 26.25″ |
|---|---|
| Unit Dimensions | 42″ (W) x 88″ (L) |
| Sleeping Surface | 80″ |
| Specification 4 | Weight 231 lbs. |
| Carton Shipping Weight | 276 lbs. |
| Weight Limit | 600 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc. |
| Warranty | (Original Purchaser) Limited Lifetime on Welds, 5 Years on Frame, 1 Year on All Other Parts and Components |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| 15300 | Select | Bariatric Bed | E0302 OR E0304 OR E1399 | 1/cs |
| 15300BV-1HR | Select | Bariatric Bed with 1 pair “T” Rails (item #15021BV) | E0301 | 1/cs |
| 15300BV-PKG | Select | Bariatric Bed Package (contains Bariatric Bed, 42″ Bariatric Foam Mattress, item #15301, and 1 pair “T” Rails, item #15021BV | E0303 | 1/cs |

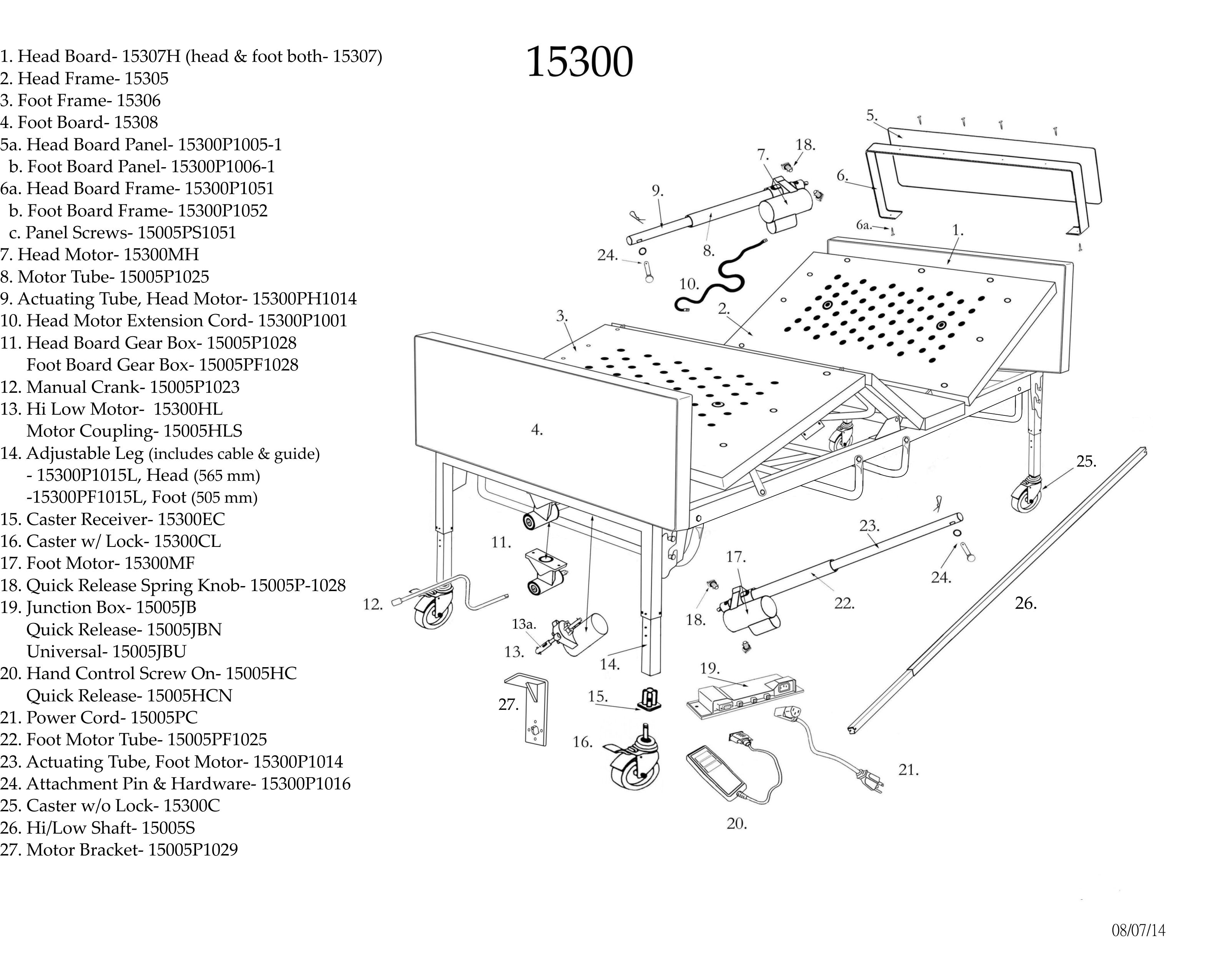

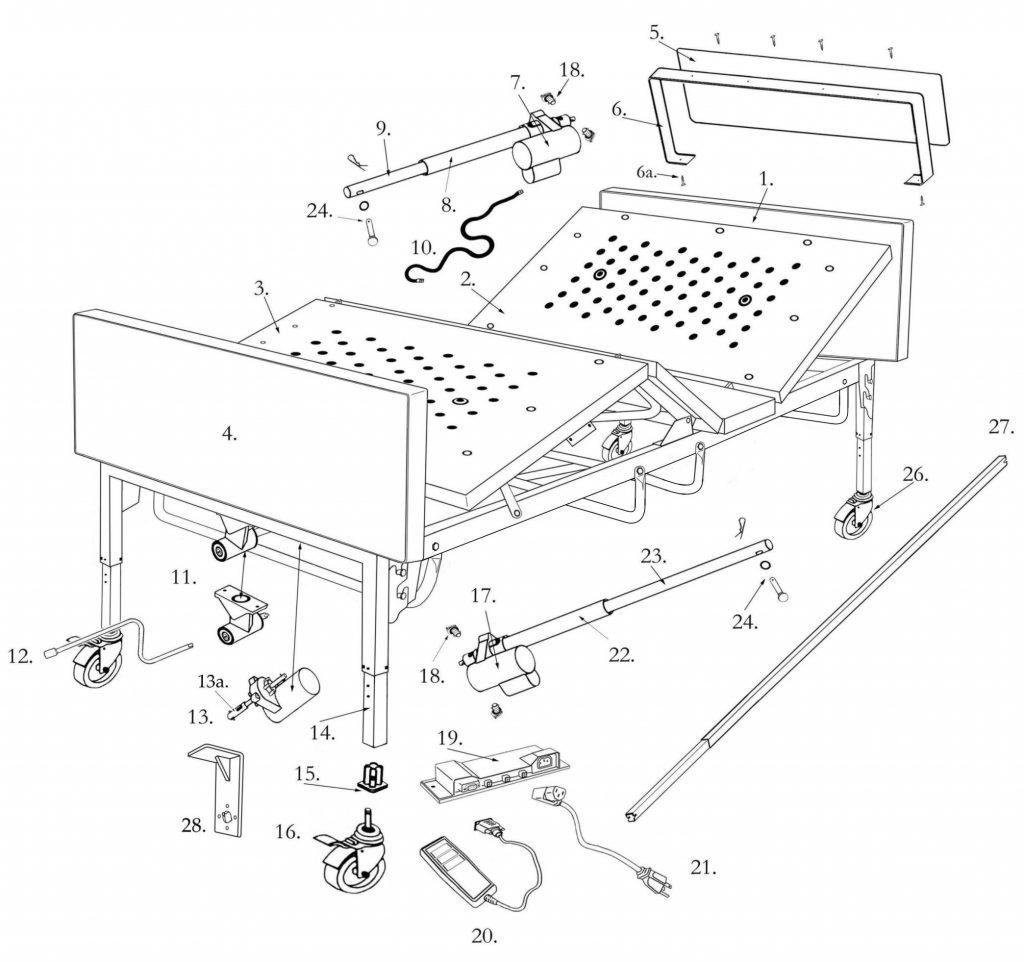

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Head Board (head & foot both- 15307) | 15307H |
| 2 | Select | Head Frame | 15305 |
| 3 | Select | Foot Frame | 15306 |
| 4 | Select | Foot Board | 15308 |
| 5a | Select | Head Board Panel | 15300P1005-1 |
| 5b | Select | Foot Board Panel | 15300P1006-1 |
| 6a | Select | Head Board Frame | 15300P1051 |
| 6b | Select | Foot Board Frame | 15300P1052 |
| 6c | Select | Panel Screw | 15005PS1051 |
| 7 | Select | Head Motor | 15300MH |
| 8 | Select | Motor Tube | 15005P1025 |
| 9 | Select | Actuating Tube Head | 15300PH1014 |
| 11 | Select | Head & Foot Board Gear Box | 15005P1028 |
| 11 | Select | Foot board gear box | 15005PF1028 |
| 12 | Select | Manual Crank | 15005P1023 |
| 13 | Select | Hi Low Motor | 15300HL |
| 13 | Select | Motor Coupling | 15005HLS |
| 14 | Select | Adj Leg Head ( 565mm) (includes cable & plastic glide) (does not include part 15) | 15300P1015L |
| 14 | Select | Adj Leg Foot ( 505mm) (includes cable & plastic glide) (does not include part 15) | 15300PF1015L |
| 15 | Select | Caster Receptacle | 15300EC |
| 16 | Select | Caster with Lock | 15300CL |
| 17 | Select | Foot Motor | 15300MF |
| 18 | Select | Quick Release Spring Knob | 15005P-1028 |
| 19 | Select | Universal | 15005JBU |
| 20 | Select | Hand Control | 15005HC |
| 20 | Select | Hand Control | 15005HCN |
| 21 | Select | Power cord | 15005PC |
| 22 | Select | Motor tube, foot | 15005PF1025 |
| 23 | Select | Actuating Tube Foot Motor | 15300P1014 |
| 24 | Select | Attachment pin & hardware | 15005P1016 |
| 25 | Select | Caster without Lock | 15300C |
| 26 | Select | Hi/Low shaft | 15005S |
| 27 | Select | Motor Mtg Bracket | 15005P1029 |
