Delta™ Ultra- Light 1000, Semi-Electric Bed
Description
- The Delta 1000 is truly universal because the bed frame can be used with Drive’s and most other manufacturers’ bed ends, old and new.
- The transition box mounted on the foot section is key to interchangeability. (Figure A)
- The transition box allows you to change the rotation of the high/low shaft.
- Headboard is taller than footboard to better fit home decor. (Figure B)
- The wood grain panels are break and scratch resistant.
- Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy.
- Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations. (Figure C)
- Labels and color-coded springs assure accurate installation of side rails for patient safety. (Figure D)
- Unique motor is completely self-contained to reduce weight and noise.
- The motor assembly can be installed and removed with patient in bed.
- Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility. Satisfies all applicable FDA entrapment guidelines.
- The motor is UL approved.
- In the event of a power failure, a 9 volt battery, located in the motor, can lower the head and foot sections nine times. No crank needed.
- New and improved hand pendant has large, easy-to-use controls. (Figure E)
- Bed ships in two cartons.
- Channel frame construction provides superior strength and reduced weight.
- Zinc-coated spring deck.
- Extension kit available (model #15030EXTKIT) extends length from 80″ to 84″.
- Patent Pending.
- Weight Capacity 450 lbs.
Specifications
Specifications
| Bed Height Minimum Without Casters | 12.75″ |
|---|---|
| Bed Height Maximum With Casters | 24″ |
| Unit Dimensions | 36″ (W) x 88″ (L) |
| Weight | 163 lbs. |
| Carton Shipping Weight | 179 lbs. |
| Weight Limit | 450 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc. |
| Warranty | (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Product Description | HCPCS* | UOM | |
|---|---|---|---|---|
| 15030 | Select | Ultra-Light Semi-Electric Bed | E0295 | 1/cs |
| 15030BV-FR | Select | Ultra-Light Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) | E0261 | 1/cs |
| 15030BV-HR | Select | Ultra-Light Semi-Electric Bed with Half Rails (item #15201BV) | E0261 | 1/cs |
| 15030BV-PKG | Select | Ultra-Light Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Innerspring Mattress (item #15006) | E0260 | 1/cs |
| 15030BV-PKG-T | Select | Ultra-Light Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Therapeutic Support Mattress (item #15019) | E0260 | 1/cs |
| 15030BV-PKG-1 | Select | Ultra-Light Semi-Electric Bed with Half Rails (item #15201BV) and 80″ Innerspring Mattress (item #15006) | E0260 | 1/cs |
| 15030BV-PKG-1-T | Select | Ultra-Light Semi-Electric Bed with Half Rails (item #15201BV) and 80″ Therapeutic Support Mattress (item #15019) | E0260 | 1/cs |
| 15030BV-PKG-2 | Select | Ultra-Light Semi-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Foam Mattress (item #15007) | E0260 | 1/cs |

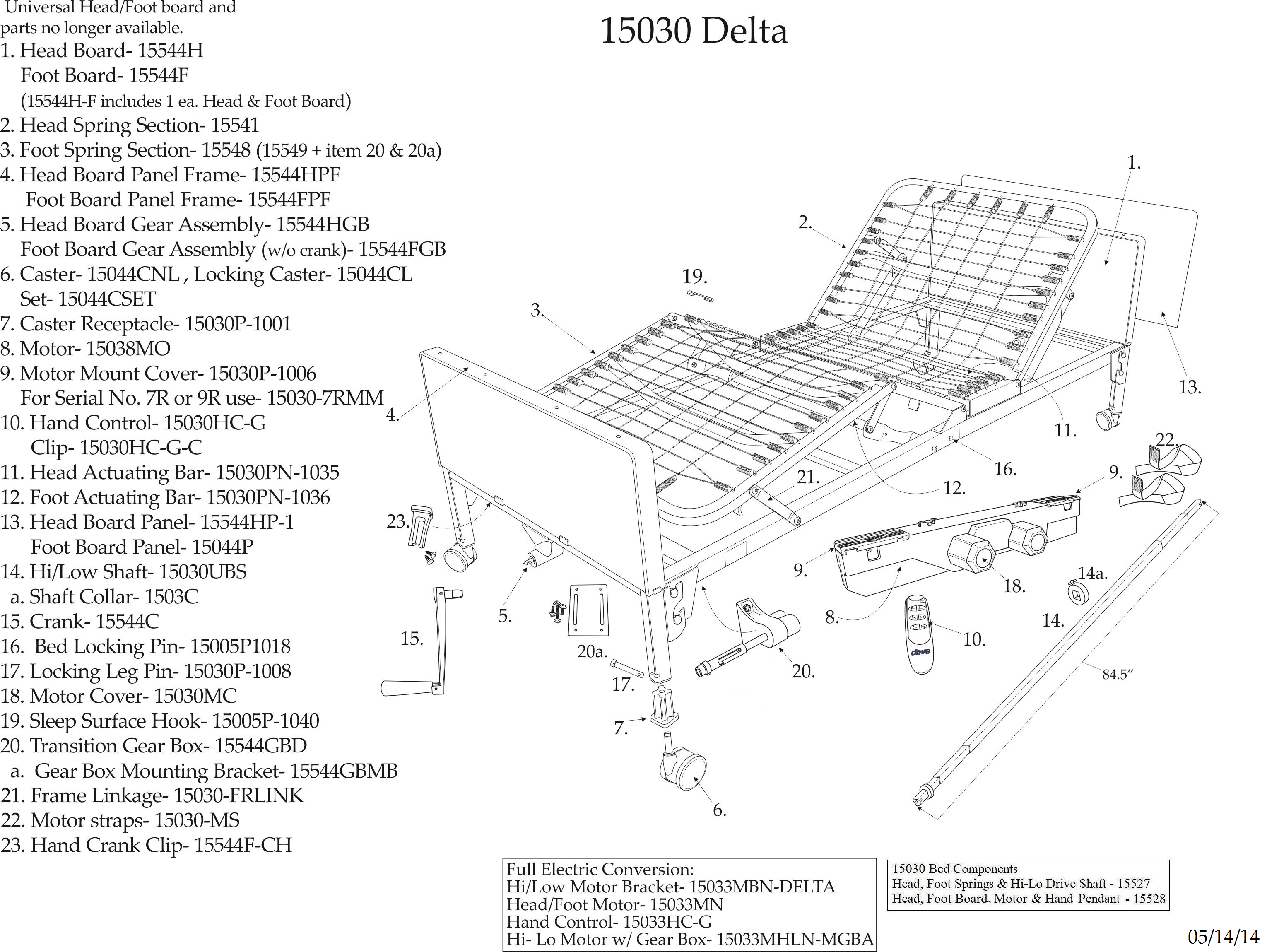

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Head Board | 15544H |
| 1 | Select | Foot Board | 15544F |
| 2 | Select | Head Spring Section | 15541 |
| 3 | Select | Foot Spring (15549 plus parts 12 & 12a) | 15548 |
| 4 | Select | Head Board Panel Frame | 15544HPF |
| 4 | Select | Foot Board Panel Frame | 15544FPF |
| 5 | Select | Head Board Gear Assembly | 15544HGB |
| 5 | Select | Foot Board Gear Assembly (w/o crank) | 15544FGB |
| 6 | Select | Caster without lock | 15044CNL |
| 6 | Select | Caster with lock | 15044CL |
| 6 | Select | Caster Set | 15044CSET |
| 8 | Select | Motor | 15038MO |
| 9 | Select | For Serial No. 7R, 9R use | 15030-7RMM |
| 10 | Select | Hand Pendant Glow In The Dark | 15030HC-G |
| 10 | Select | Clip | 15030HC-G-C |
| 11 | Select | Head Actuating Bar | 15030PN-1035 |
| 12 | Select | Foot Actuating Bar | 15030PN-1036 |
| 13 | Select | Foot Board Panel | 15044P |
| 14 | Select | Hi-Lo Drive Shaft (with Collar) | 15030UBS |
| 14a | Select | Collar | 1503C |
| 15 | Select | Hand Crank | 15544C |
| 16 | Select | Bed Locking Pin | 15005P1018 |
| 17 | Select | Locking Leg Pin | 15030P-1008 |
| 18 | Select | Motor Cap | 15030MC |
| 19 | Select | Sleep surface hook | 15005P-1040 |
| 20 | Select | Transistion Gear Box | 15544GBD |
| 20a | Select | (After serial # 1S120329900…) | 15544GBMB |
| 21 | Select | Frame Linkage | 15030-FRLINK |
| 22 | Select | Motor Strap | 15030-MS |
| 23 | Select | Hand Crank Clip | 15544F-CH |
| Select | Bed Components | 15030 | |
| Select | Head Board Panel | 15544HP-1 | |
| Select | Motor Mount (Okin) | 15030P-1006 | |
| Select | Caster Receptacle | 15030P-1001 |
