Viper Wheelchair
Price range: $621.69 through $648.21
Description
Product Summary
- Viper weighs 32 lbs. (Excluding front rigging)
- Easier to propel and transport.
- Frame style eliminates seat guides and allows for custom backs and accessories.
- Back height adjustable from 18″– 20″.
- Carbon steel black powder-coated frame double coated for an attractive, chip-proof, maintainable finish.
- Durable, flame retardant nylon upholstery resists mildew and bacteria.
- Composite Mag-style wheels with aluminum hand rims are lightweight and maintenance free.
- Urethane rear tires and casters offer superior performance, smoother ride and are lightweight.
- 8″ Front casters have three height adjustments.
- Nylon, padded armrests provide added patient comfort.
- Flip-back arms allow for easy transfer.
- Composite steel lined front receiver is angled so the arm will lock into place every time.
- The front mounted release lever can be flipped up or down to unlock flip-up arm, depending on the patient’s needs. (Figure A – B)
- Precision sealed wheel bearings in front and rear ensure long-lasting performance and reliability.
- Dual axle provides easy transition of seat height to hemi level.
- Comes with swing-away footrests or elevating leg rests with tool-free adjustable length riggings.
- Composite foot plates with heel loops are durable and lightweight.
- Comes standard with flip-up anti-tippers.
- Comes with push-to-lock wheel locks.
- Available in 12″ and 14″ seat widths.
Additional information
| Select |
12" Seat ,14" Seat |
|---|---|
| Option |
Flip back desk arm, Swing-away elevating leg rests ,Flip back desk arm, Swing-away footrests |
Products
Products
| Item # | Seat Width | Armrest | Product Front Riggings | HCPCS* | UOM | |
|---|---|---|---|---|---|---|
| L412DDA-SF | Select | 12″ | Flip-Back Desk Arm | Swing-away Footrests | E1236 | 1/cs |
| L412DDA-ELR | Select | 12″ | Flip-Back Desk Arm | Swing-away, Elevating Leg rests | E1236+K0195 OR E0990 | 1/cs |
| L414DDA-SF | Select | 14″ | Flip-Back Desk Arm | Swing-away Footrest | E1235 | 1/cs |
| L414DDA-ELR | Select | 14″ | Flip-Back Desk Arm | Swing-away, Elevating Leg rests | E1235+K0195 OR E0990 | 1/cs |
| L416DDA-SF | Select | 16″ | Flip-Back Desk Arm | Swing-away Footrests | K0004 | 1/cs |
| L416DFA-SF | Select | 16″ | Flip-Back Full Arm | Swing-away Footrests | K0004 | 1/cs |
| L418DDA-SF | Select | 18″ | Flip-Back Desk Arm | Swing-away Footrests | K0004 | 1/cs |
| L418DFA-SF | Select | 18″ | Flip-Back Full Arm | Swing-away Footrests | K0004 | 1/cs |
| L420DDA-SF | Select | 20″ | Flip-Back Desk Arm | Swing-away Footrests | K0004+E2201 | 1/cs |
| L420DFA-ELR | Select | 20″ | Flip-Back Full Arm | Swing-away, Elevating Leg rests | K0004+E2201+K0195 OR E0990 | 1/cs |
Heel Loops
| Item # | Description | UOM | |
|---|---|---|---|
| STDS831 | Select | Heel Loops | 1/bx |
Chart Carry Pocket
| Item # | Description | UOM | |
|---|---|---|---|
| STDS835 | Select | Chart Carry Pocket | 1/ea |
One Arm Drive
| Item # | Description | UOM | |
|---|---|---|---|
| STDS4055L | Select | Left (For use with 18″ and 20″) | 1/ea |
| STDS4055R | Select | Right (For use with 18” and 20”) | 1/ea |
Wheelchair Cane/Crutch Holder
| Item # | Description | UOM | |
|---|---|---|---|
| STDS1034 | Select | Wheelchair Cane/Crutch Holder | 1/ea |
Limb Support
| Item # | Description | UOM | |
|---|---|---|---|
| WASR | Select | Limb Support, Right | 1/ea |
| WASL | Select | Limb Support, Left | 1/ea |
Universal Oxygen “E” Cylinder Holder With I.V. Pole
| Item # | Description | UOM | |
|---|---|---|---|
| STDS804 | Select | Universal Oxygen “E” Cylinder Holder with IV Pole Attachment | 1/ea |
Seat Rail Extension
| Item # | Description | UOM | |
|---|---|---|---|
| STDS810 | Select | Seat Rail Extensions | 1/pr |
| STDS2018N | Select | Seat Rail Extension Kit | 1/ea |
Overhead Anti Theft Device
| Item # | Description | UOM | |
|---|---|---|---|
| STDS823 | Select | Overhead Anti-Theft Device | 1/ea |
| STDS821 | Select | Overhead Anti-Theft Device With IV Hooks | 1/ea |
| STDS834 | Select | Overhead Anti-Theft Device Single Pole | 1/ea |
24″ Wheel
| Item # | Description | UOM | |
|---|---|---|---|
| STDS1001 | Select | Standard 24″ Wheel | 1/ea |
Telescoping IV Pole Attachment
| Item # | Description | UOM | |
|---|---|---|---|
| STDS820 | Select | Telescoping IV Pole Attachment | 1/ea |
Flat Free Wheel With Handrim
| Item # | Description | UOM | |
|---|---|---|---|
| STDS840 | Select | Flat-free Wheel With Handrims | 1/ea |
Oblique Projection Handrim
| Item # | Description | UOM | |
|---|---|---|---|
| STDS1022 | Select | Oblique Projection Handrim | 1/ea |
8″ Caster
| Item # | Description | UOM | |
|---|---|---|---|
| STDS1002 | Select | Standard 8″ Caster | 1/ea |
Seat Belts
| Item # | Description | UOM | |
|---|---|---|---|
| STDS850 | Select | Seat Belts, Auto-Clasp Type Closure | 1/ea |
| STDS851 | Select | Seat Belts, Hook and Loop Fastener Type Closure | 1/ea |
| STDS855 | Select | Seat Belts, Auto-Clasp Type Closure, Bariatric | 1/ea |
| STDS856 | Select | Seat Belts, Hook and Loop Fastener Type Closure, Bariatric | 1/ea |
Anti Tippers
| Item # | Description | UOM | |
|---|---|---|---|
| STDS807 | Select | Anti-Tippers With Wheels | 1/pr |
| STDS814 | Select | Anti-Tippers With Wheels | 1/pr |
6” Wheel Lock Extension
| Item # | Description | UOM | |
|---|---|---|---|
| STDS801 | Select | Wheel Lock Extension | 1/ea |
Amputee Adapter
| Item # | Description | UOM | |
|---|---|---|---|
| STDS826 | Select | Amputee Adapter | 1/pr |
| STDS826C | Select | Amputee Adapter | 1/pr |
Universal Forward Stabilizer
| Item # | Description | UOM | |
|---|---|---|---|
| STDS860 | Select | Universal Forward Stabilizer | 1/pr |
Specifications
Specifications
| Width Open (12″ Seat | 14″ Seat) | 20″ | 22.5″ |
|---|---|
| Width Open (16″ Seat | 18″ Seat) | 22.5″ | 24.5″ |
| Width Open with 20″ Seat | 28″ |
| Width Closed | 12″ |
| Height with 12″ and 14″ Seats | 32″ |
| Height with 16″, 18″ and 20″Seat | 36″ |
| Seat-To-Floor Height (12″ – 14″) (16″ – 20″) | 13.5″ – 15.5″ | 17.5″ – 19.5″ |
| Back Height | 16″ – 18″ |
| Seat Depth with 12″ Seat | 12″ |
| Seat Depth with 14″ Seat | 14″ |
| Seat Depth with 16″, 18″ and 20″ Seat | 16″ |
| Length with Riggings with 12″ and 14″ Seats | 36″ |
| Length with Riggings with 16″, 18″ and 20″ Seat | 42″ |
| Product Weight with 12″ Seat | 30 lbs. |
| Product Weight with 14″ Seat | 31 lbs. |
| Product Weight with 16″ Seat | 31.5 lbs. |
| Product Weight with 18″ Seat | 32 lbs. |
| Product Weight with 20″ Seat | 34 lbs. |
| Carton Shipping Weight | 39 lbs. or less |
| Weight Limit (with 12″ and 14″ seat) | 250 lbs. |
| Weight Limit (with 16″, 18″ and 20″ seat) | 300 lbs. |
| Warranty | Limited Lifetime |
| Warranty | Limited Lifetime |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Download Video
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]

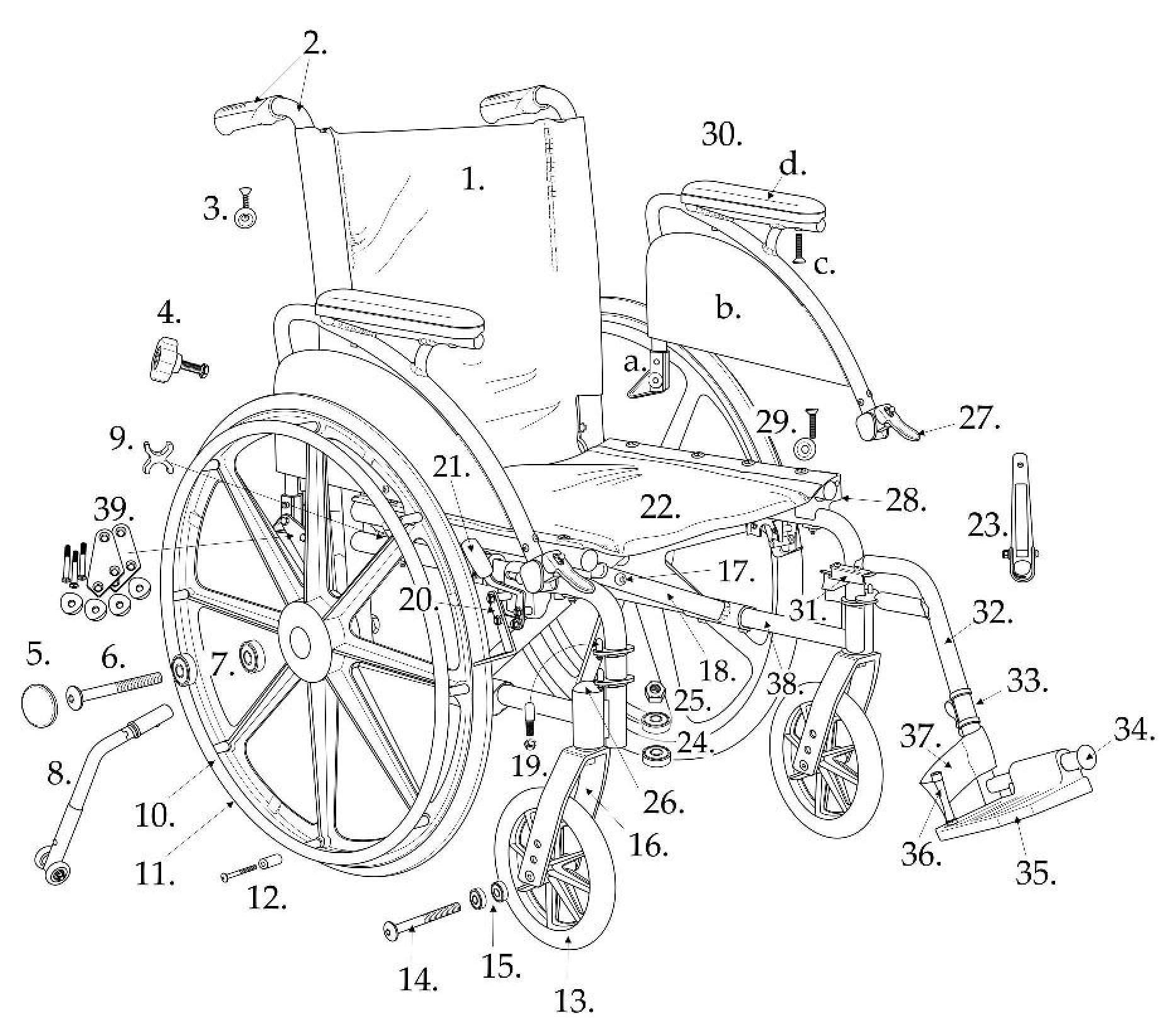

Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Back Upholstery- 16″ | STDS2363BLK |
| 1 | Select | Back Upholstery- 18″ | STDS2359BLK |
| 2 | Select | Handgrip | STDS871 |
| 1 | Select | Back Upholstery- 20″ | STDS2361BLK |
| 3 | Select | Desk arm pad | STDSDSKNB |
| 6 | Select | 24″ Wheel Axle Bolt | STDS1005 |
| 6 | Select | Arm release lever | STDS4012-3 |
| 7 | Select | Front Wheel Bearing | STDS1012 |
| 7 | Select | Seat rail bracket, Aluminum (right) | STDS2A3141 |
| 7 | Select | Seat rail bracket, Aluminum (Left) | STDS2A3140 |
| 8 | Select | Anti-tippers (pair) | STDS807N |
| 8 | Select | Seat rail saddle | STDS4058 |
| 10 | Select | Rear Wheel/ BIk. Hand rail | STDS1006 |
| 9 | Select | Fork Stem Cap | STDS1051 |
| 10 | Select | Alum. Hand rail | STDS1001 |
| 11 | Select | Hand Rim | STDS004012 |
| 11 | Select | Aluminum | STDS004011 |
| 12 | Select | H/R Screws & Spacers | STDS1073 |
| 13 | Select | Front Caster | STDS1002 |
| 14 | Select | Caster axle bolt | STDS1002-1 |
| 15 | Select | cross brace bolt | STDS001061 |
| 16 | Select | Front Caster Fork | STDS3003 |
| 18 | Select | Cross Frame 18″ | STDS2A3118 |
| 18 | Select | Cross Frame 20″ | STDS2A3120 |
| 20 | Select | Brake (Right) | STDS4025R |
| 20 | Select | Brake (Left) | STDS4025L |
| 20 | Select | Wheel Bearing | STDS1011 |
| 21 | Select | rubber tip | STDS4011 |
| 22 | Select | Seat Upholstery 16″ | STDS2356BLK |
| 22 | Select | Seat Upholstery 18″ | STDS2358BLK |
| 22 | Select | Seat Upholstery 20″ | STDS2360BLK |
| 25 | Select | Rear wheel dust cap | STDS1050 |
| 24 | Select | Fork Stem Bearing | STDS1060 |
| 28 | Select | Back height adjustment knob | STDS895 |
| 25 | Select | Fork Stem Nut | STDS001045 |
| 28 | Select | Seat Rail Bracket, Plastic Rt. | STDS2A3133 |
| 28 | Select | Seat Rail Bracket, Plastic Lt. | STDS2A3134 |
| 30 | Select | Desk Arm Rt. | STDSDDAVR |
| 30 | Select | Desk Arm Lt. | STDSDDAVL |
| 36 | Select | Footrest Bumper | STDS1026 |
| 30 | Select | Full Arm Rt. | STDSDFAVR |
| 30 | Select | Full Arm Lt. | STDSDFAVL |
| 30 | Select | Adj. Desk Arm Rt. | STDSADFAVR |
| 30 | Select | Adj. Desk Arm Lt. | STDSADFAVL |
| 39 | Select | Handlebar and Grip | STDS2A3157 |
| 30 | Select | Slope Arm Desk Rt. | STDSDDAVR-SA |
| 30 | Select | Slope Arm Desk Lt. | STDSDDAVL-SA |
| 30 | Select | Slope Arm Full Rt. | STDSDFAVR-SA |
| 30 | Select | Slope Arm Full Lt. | STDSDFAVL-SA |
| 30a | Select | Pivot Bracket | STDS2A3143 |
| 30b | Select | Panel Rt. | STDS2A3147 |
| 30b | Select | Panel Lt. | STDS2A3148 |
| 30c | Select | Arm Pad Bolts | STDS2A3142 |
| 30c | Select | Arm Pad Bolts | STDSCO2001 |
| 30d | Select | Arm Pad- Full | STDSFLNB |
| 31 | Select | Footrest release lever Rt. | STDS00004R |
| 31 | Select | Footrest release lever Lt. | STDS00004L |
| 32 | Select | Footrest hanger (right) | STDS00202R |
| 32 | Select | Footrest hanger (left) | STDS00202L |
| 33 | Select | Footrest Adj. Lever | STDS3J4502 |
| 35 | Select | Footplate Aluminum | STDS00004A |
| 36 | Select | Heel Strap Post | STDS1M4047 |
| 37 | Select | Heel Strap | STDS831 |
| 38 | Select | Side Frame (right) | STDS2A311R |
| 38 | Select | Side Frame (left) | STDS2A311L |
| 39 | Select | Rear Armrest Bracket | STDS2AVFRB |
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Aluminum Transport Chair
Product Summary
- Weighs only 19 lbs.
- Aluminum frame is lightweight and strong.
- Composite 8" wheels are lightweight and maintenance free.
- Both 17" and 19" come with swing-away footrests.
- Comes with seat belt for added safety.
- Padded armrests provide additional comfort.
- Nylon upholstery is comfortable, lightweight and easy-to-clean. Back folds down for storage and transport.
- Aluminum casted back-release hinge allows back to fold down for easy storage and transport.
Bariatric Steel Transport Chair
Product Summary
- Supports individuals up to 450 lbs.
- Reinforced steel frame provides added support.
- Dual, reinforced steel cross braces.
- Available in blue or red frames.
- 12" rear flat free wheels.
- Comes with swing-away footrests.
- Padded armrests provide additional comfort.
- Heavy-duty, nylon reinforced upholstery with a back carry pouch.
- Removable, reversible desk-length arms.
- Companion activated wheel locks.
Cougar Wheelchair
Price range: $870.11 through $993.14
Select options
This product has multiple variants. The options may be chosen on the product page
Silver Sport 2 Wheelchair
Price range: $239.55 through $301.98
Select options
This product has multiple variants. The options may be chosen on the product page
Silver Sport Full-Reclining Wheelchair
Product Summary
- Hydraulic reclining mechanism allows for infinite adjustments up to 180°.
- Arms have support extension for reclining position.
- Nylon upholstery is comfortable, lightweight and easy-to-clean.
- Carbon Steel frame with silver vein finish is attractive, and easy-to-maintain. (Figure A)
- Composite Mag-style wheels are lightweight and maintenance free.
- 8" front casters.
- Padded armrests provide added patient comfort.
- Wheels set back on frame prevents tipping.
- Precision sealed wheel bearings in front and rear ensure long lasting performance and reliability.
- Rear anti-tippers standard.
- Headrest extension with cushioned head immobilizer standard.
- Comes standard with swing-away elevating leg rests.
- Metal foot plates.
- Comes with push to lock wheel locks.
Super Light, Folding Transport Chair with Carry Bag and Flip-Back Arms
Product Summary
- Padded flip-back armrests. Fold-down footrests.
- Weighs only 19 lbs. Easy to push or transport.
- Aluminum frame with lightweight nylon upholstery.
- Composite wheels are lightweight and maintenance free.
- Folds like a conventional folding chair. (Figure A)
- Comes with carry bag (item #835) with shoulder strap. (Figure B)
- Standard rear wheel locks and seat belt.
Universal Cup Holder
Product Summary
- New clamp allows cup holder to swivel to keep contents level.
- Easily attaches to wheeled walkers, rollators, transport chairs/wheelchairs with tubing diameter from 5/8" to 1".
- Special clamp insert can be added or removed as necessary to accommodate different size tubing.
- Made with durable, lightweight plastic.
