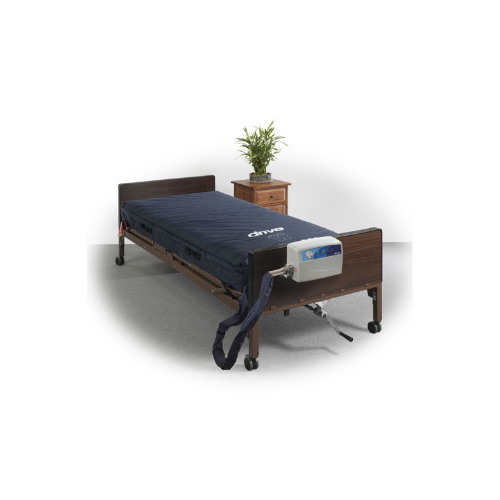

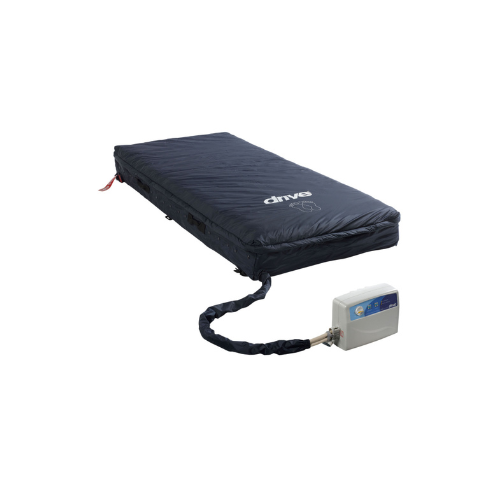

Med-Aire Assure 5″ Air + 3″ Foam Base Alternating Pressure and Low Air Loss Mattress System
Product Summary
- This combination therapy mattress system provides both alternating pressure and low air loss to optimize pressure redistribution and manage skin maceration
- Designed to prevent, treat and manage pressure ulcers in the home or long term care setting

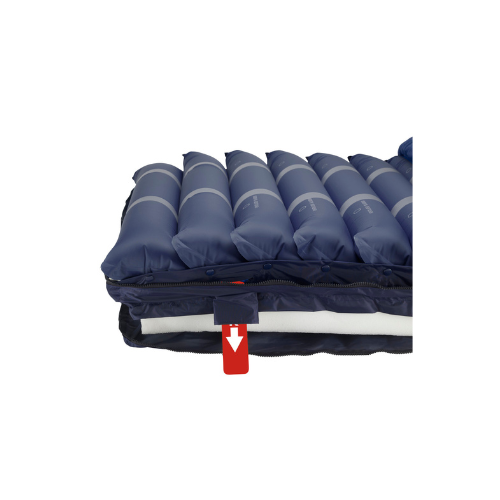

- The Med-Aire Assure 14530 incorporates a system of (17) 5″ individual bladders over a 3″ foam base for power outage protection

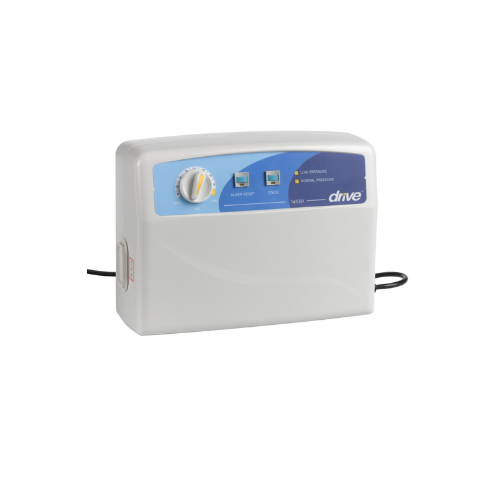

- The pump offers a static feature as well as adjustable comfort settings by patient weight
- The removable cover is quilted for comfort, low shear, anti-microbial, water-resistant and vapor permeable
- CPR valve allows for rapid deflation
Specifications
Specifications
| Control Unit Power | 110 VAC 60 Hz |
|---|---|
| Control Unit Airflow | 8 LPM |
| Control Unit Cycle Time | 10 Min. |
| Control Unit Type | Compressor |
| Control Unit Alarms | Visual / Audible |
| Mattress Cover Material | Fluid-Resistant Nylon |
| Weight Capacity | 350 lbs. |
| Warranty | 1 Year Limited |
Downloads
Downloads
Owners Manual
Catalog Page
Products
Products
| Item # | Product Description | Product Dimensions | UOM |
|---|---|---|---|
| 14530 | Alternating Pressure/Low Air Loss Mattress System (replaces AS5300) | 36″ (W) X 80″ (L) X 8″ (H) | 1/ea |
Order Now!
Order Now!
[gravityform id=”1″ title=”false” description=”false”]
Related products
10 ” Lateral Rotation Mattress with on Demand Low Air Loss
Features
- 10, 20, 30 & 60 minute adjustable turning cycles
- Audible and visual low pressure alarms
- Auto-Firm feature for max inflation when transferring patient and has auto-recovery after 30 minutes
- CPR deflation in 20 seconds
- Lockout feature to protect patient settings
- The (2) side bolsters provide the patient with optimal comfort while creating a safe environment during rotation
- The Masonair? LS9500 Turn-Style system incorporates the functions of lateral rotation and low air loss in one unit
- The continuous feedback sensor technology of the control unit will equalize pressure and maximize patient comfort
- The lateral rotation mode will assist in pulmonary blood flow and mucosal drainage, while the ?on demand? low air loss function will provide a cool and dry surface for prevention and treatment of pressure ulcers
- The mattress is constructed of (20) 8? high split-air cells over a 2" foam base with (2) 10" high side air bolsters
- The user friendly high flow control unit offers 10comfort levels, adjustable turning cycles and maximum turn angle adjustment of up to 40 degrees
- ¼, ½, ¾ & full position adjustable turning positions up to 40°
Gravity 7 Long Term Care Pressure Redistribution Mattress
Features
- Meets fire code 1633
- Multi-layered, high density foam provides optimal pressure redistribution
- Optional firm side rails help the patient transfer in and out of bed minimizing the risk of falling
- The cover provides a low moisture transmission rate (MVT) which keeps the patient cool and dry
- The mattress cover is a 2-way stretch, water resistant, vapor permeable nylon
- The ultra soft heel section is uniquely designed to provide extremely low skin interface pressure
- Top layer of foam is high resilient and die-cut which provides comfort and proper pressure redistribution
Masonair 8″ Alternating Pressure and Low Air Loss Mattress System
Features
- Alternating Pressure Mode has 10, 15, 20, 25 minute cycle times
- Auto-Firm feature for max inflation when transferring patient and has auto-recovery after 30 minutes
- CPR valve allows for rapid deflation
- In case of a power failure the bottom 4" air cell will remain inflated offering sufficient weight support for the patient
- Lockout feature protects patient settings
- Pillow Top feature keeps head and neck stable
- Seat Inflation mode offers additional support when head of bed is raised for an extended period of time
- Static Mode can suspend alternating mode and has auto-recovery after 30 minutes
- The 10 adjustable comfort settings allows pressure to be customized by patient weight
- The Masonair? AS8800 Alternating Pressure Mattress with Low Air Loss is one of the most advanced systems in the Masonair? series
- The mattress consists of (20) 8" high cell-on-cell designed air bladders
- The microprocessor sensor technology provides continuous feedback to equalize pressure and maximize patient comfort
- Visible and audible alarms with Alarm Mute feature (3minute auto-return feature)
Med Aire 8″ Defined Perimeter Low Air Loss Mattress Replacement System with Low Pressure Alarm
Features
- 8" cells are constructed with Nylon/TPU that is soft and light weight
- CPR valves provide fast (20-Second) deflation
- Cell-on-Cell design prevents "Bottoming Out" in the event of power failure
- Ideal for use in hospitals, nursing homes and home care
- LED and Audible alarm activates when mattress pressure falls below 10 mmHg
- Mattress has 20 air bladders, 9 with laser hose to achieve low air los function helping to keep the patient cool and speed recovery
- Mattress operates in an alternating pressure mode
- Quick fill adapter standard
- Specially designed air supply manifolds quietly operate alternating pressure and air loss systems, while maintaining firm "Defined Perimeter"
- Spring lined tubing prevents kinks and helps maintain airflow
- Static perimeter tubing surrounds the length of the mattress preventing the patient from becoming trapped between the mattress and side rails
- The product is designed to be used in the prevention, treatment and management of Pressure Ulcers
- Whisper Quiet pump produces 8-LPM (Liters per Minute) in air flow
Med Aire Bariatric Heavy Duty Low Air Loss Mattress Replacement System
Features
- 10" cells are constructed with Nylon/TPU that is soft, lightweight and will not stretch
- CPR valves provide fast (20 second) deflation
- Cell-on-Cell design prevents the patient from "Bottoming Out" in the event of power failure
- Ideal for use in nursing homes, hospitals and home use
- LED and Audible low pressure alarm activate when pressure falls below 10-mmHg
- Mattress has 20 air bladders
- Mattress operates in an alternating pressure mode
- Quick fill adapter standard
- The product is designed to be used in the prevention, treatment and management of Pressure Ulcers
- The zippered Nylon/TPU cover material is quilted, water resistant, vapor permeable and machine washable
- Whisper quiet pump produces 15-LPM (Liters per Minute) in air flow
Med Aire Low Air Loss Mattress Replacement System with Alternating Pressure
Features
- 8-Inch high air cells are constructed with Nylon/50% PVC for durability
- CPR valves provide fast (20-Second) deflation
- Easy to replace individual bladders
- LED and audible alarm provide critical performance data and alert caregiver when pressure falls below 10mmHg (inner mattress pressure)
- Mattress can operate in an alternating or static pressure mode
- Mattress has 20 air bladders, nine (9) with laser holes to achieve low air loss function, to increase patient comfort, keep the patient cool and speed recovery
- Quick fill adapter and carry bag standard
- Special vibration isolating features insure that the patient rests easily, without feeling the pumps vibrating action
- Spring lined air tubes prevent kinks and disruption of air flow
- The "WHISPER QUIET" pump produces consistent air flow
- The system provides alternating pressure and is designed to be used in the prevention, treatment and management of Pressure Ulcers
ShearCare 700 3 Layer Pressure Redistribution Foam Mattress
Features
- Bottom layer of high density foam provides a firm foundation
- Mattress is fully reversible end-to-end, increasing product longevity
- Meets Federal Fire Code CFR 16 part 1633
- Multi-layered pressure redistribution foam mattress that features three-zones with a specifically designed top layer of precision die-cut foam
- The ShearCare? 700 increases air circulation throughout the mattress, reducing heat buildup between the patient and sleeping surface
- Top Cover is a 2-way stretch nylon which reduces heat buildup and provides a low shear surface that -microbial and water-resistant Concealed zipper and a Barrier Stop Over-Flap prevents liquids from contaminating mattress core
- Unique SSPT Rail System? provides solid-edge support, allowing easy patient transfer to and from bed
